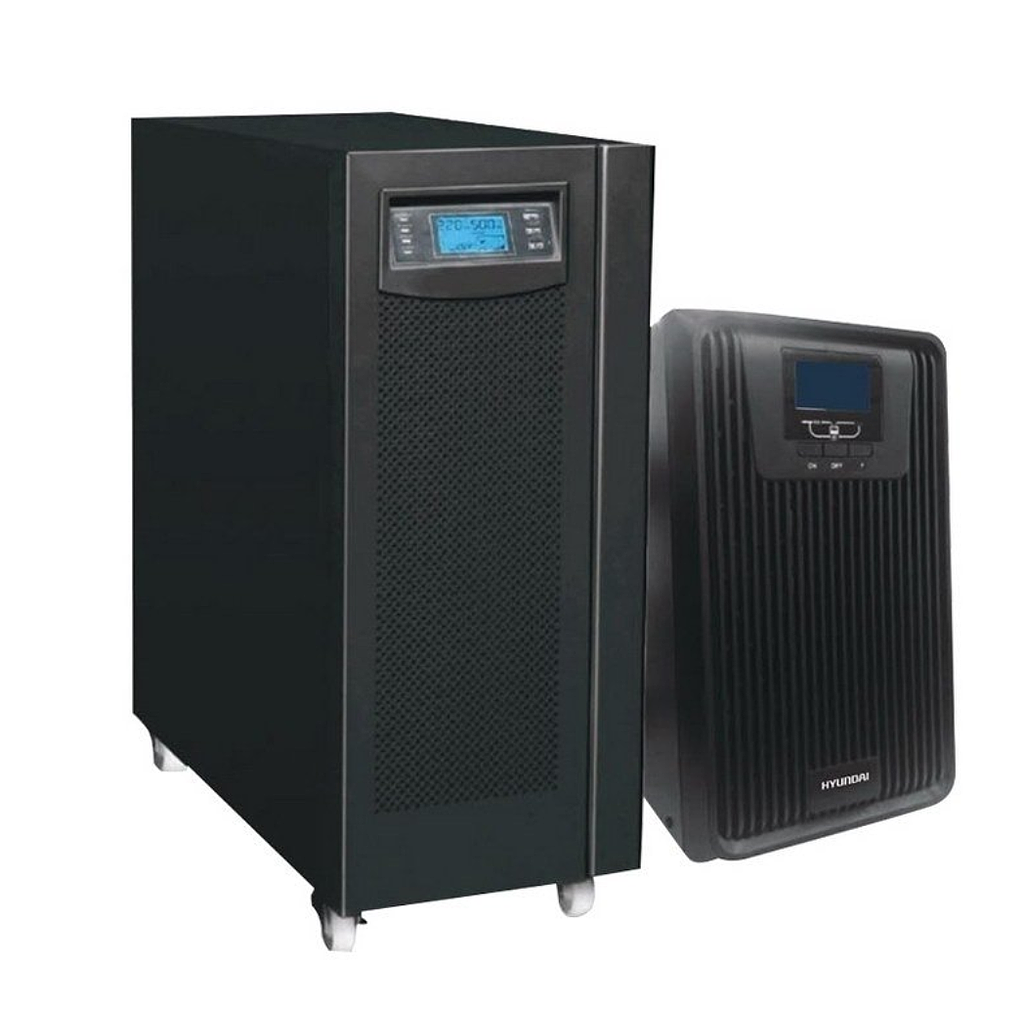

Hyundai HD-6KT8 Online Uninterruptible Power Supply (6KVA/ 4.8KW)

Specifications

Rated power (KVA/KW): 6/4.8

Noise level (dB): <55

Input specification

Nominal voltage (VAC): 220/ 230/ 240 (selectable)

Voltage range (VAC): 165-285 at 100% load

Frequency range (Hz): 45-65

Output specification

Voltage (VAC): 220/ 230/ 240 (auto or selectable)

Frequency (Hz): 50/60

Transfer time (second): main mode to battery mode: 0 ms; inverter mode to bypass mode: 0 ms

Waveform: Pure sine wave

Battery

Quantity and type: 16 x 9Ah

Charging time: 90% capacity restored in 4 hours

Dimension & Weight

Product dimensions (mm): 250 x 500 x 615 (W x H x D)

Weight: 64kg

Operating environment

Operating temperature: 0ºC – 40ºC

Humidity: 20 – 90% without condensation
