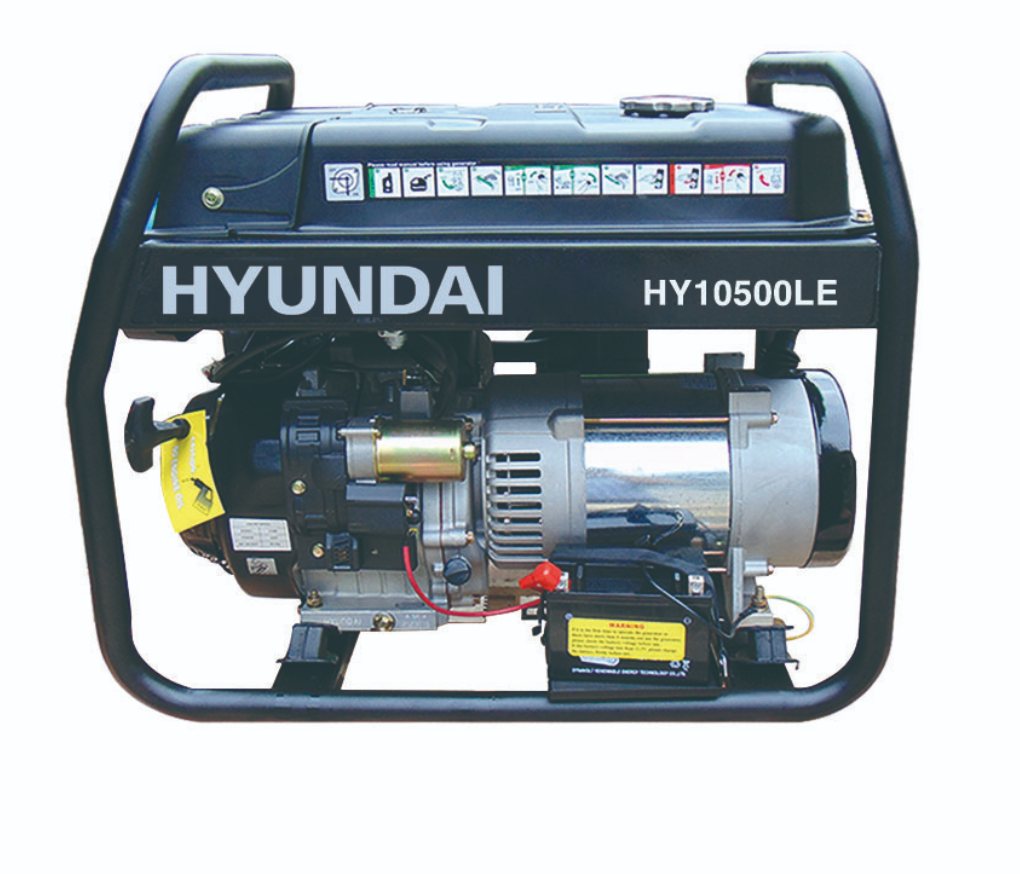

Hyundai HY10500LE Gasoline Generator (7 KVA, single phase)

Generator

Rated power (kVA): 7

Max Power (kVA): 7.5

Power factor Cosφ: 1

Voltage: 220 V

Voltage Regulation: ±2% (after 30s on load)

Frequency: 50

Phase: single

Fuel tank capacity: 25 L

Fuel consumption at 100% load: 4 L/h

Starting system: recoil/electric

Dc output (V/A): 12/6

Display: digital LEDs

Sound level @7m at 75% load: 78 dBA

Overload (standby power): 1 hours in 12 hours operation

Engine

Model IC460

Engine type: 4 stoke, OHV type

Power @3600rpm (hp/kW) 20/14.9

Displacement: 459 cc

Oil capacity: 1.1L

Rated speed: 3000 rpm

Cooling system: air-cooled

Alternator

Model AL7.5

Power: 7.5 kVA

Voltage Regulation: AVR

Insulation class: H

Protection class: IP23

Dimension and Weight

Net weight: 89 kg

Dimension (L*W*H): 690x520x550 mm
