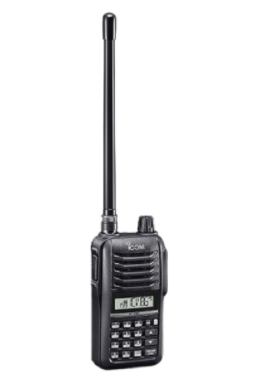

ICOM IC-V86 Portable Radio (VHF)
Manufacturer: ICOM Model: IC-V86 Origin: Japan Guarantee: 18 Month - Request a Quotation
- Contact
Frequency Range (Range Guaranteed): 136-174 MHz
Emission type F2D, F3E (FM, FM-N)
Number of channels: 207 channels (200 memory channels, 1 call channel and 6 scan channels)
Antenna impedance 50Ω
7.5V DC power supply required
Operating temperature Prohibiting 20 C to +60 C, summer 4 ° F to +140 ° F
Frequency stability ± 2.5 pages / min
Dimensions (W × H × D) 58.6 × 112 × 30.5 mm, 2.3 × 4.4 × 1.2 inches (with BP-298)
Weight (approximate) 300 g (with BP-298, FA-B57V)
Play section
Power 7.0 / 5.5 / 2.5 / 0.5 W (EX Hi / Hi / Mid / Low)
Maximum frequency deviation ± 5.0 kHz / ± 2.5 kHz (Wide / narrow)
Spurious emission Less than –60 dB
2.5 (d) mm (1/10 ") / 2.2 kΩ 3-wire microphone connector
Receiver section
Receiving sensitivity –124 dBm
Receiving sensitivity with SQL –126 dBm
Adjacent channel selectivity (Wide / Narrow) 75 dB typical / 70 dB typical
Modulation 65 dB
Sound power
1500 mW internal speaker (with 8Ω load)
Headphones 500 mW (with 8Ω load)
Speaker connector 3-connector 3.5 mm
Accessories included
Battery pack: BP-298 / BP-299 / BP-264
Desktop charger: BC-240
AC adapter: BC-242
Belt: MB-124
