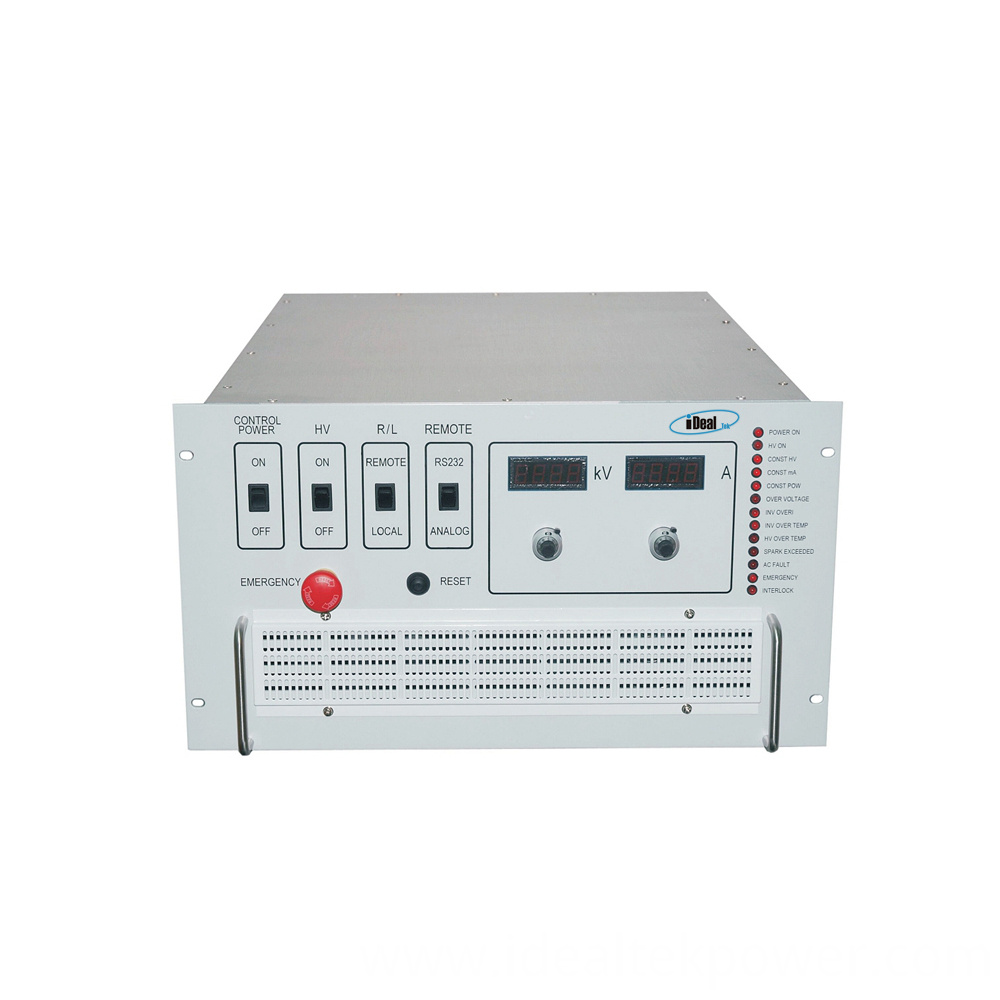

IdealTek CCP-(N/P)6kW-80kV High Voltage Capacitor Charging DC Power Supply (6KW, 80KV, 75mA)

Input

Voltage: 3P 380Vac

Frequency: 50Hz/60Hz

Output

Rated power: 6KW

Output voltage: 80KV

Output current: 75mA

Ripple (Vr.m.s.): ≤0.1% rated output

Efficiency: ≥90%

Setting and display

Control mode: RS485 communication interface, In line with MODBUS-RTU standard.

Display mode: 4/1/2 LED digital display

        Display resolution: ≤1%

Protection and monitoring function: Load discharging protection, short circuit protection, over current protection

Noise: ≤65dB

Protection degree: IP20

Cooling method: Forced air cooling

Working conditions: 0°C～40°C, 10%～90% (non-condensing)

Storage conditions: -20°C～60°C, 10%～90%

Size: 483*266*573 (19” 6U)

Weight: ~55kg
