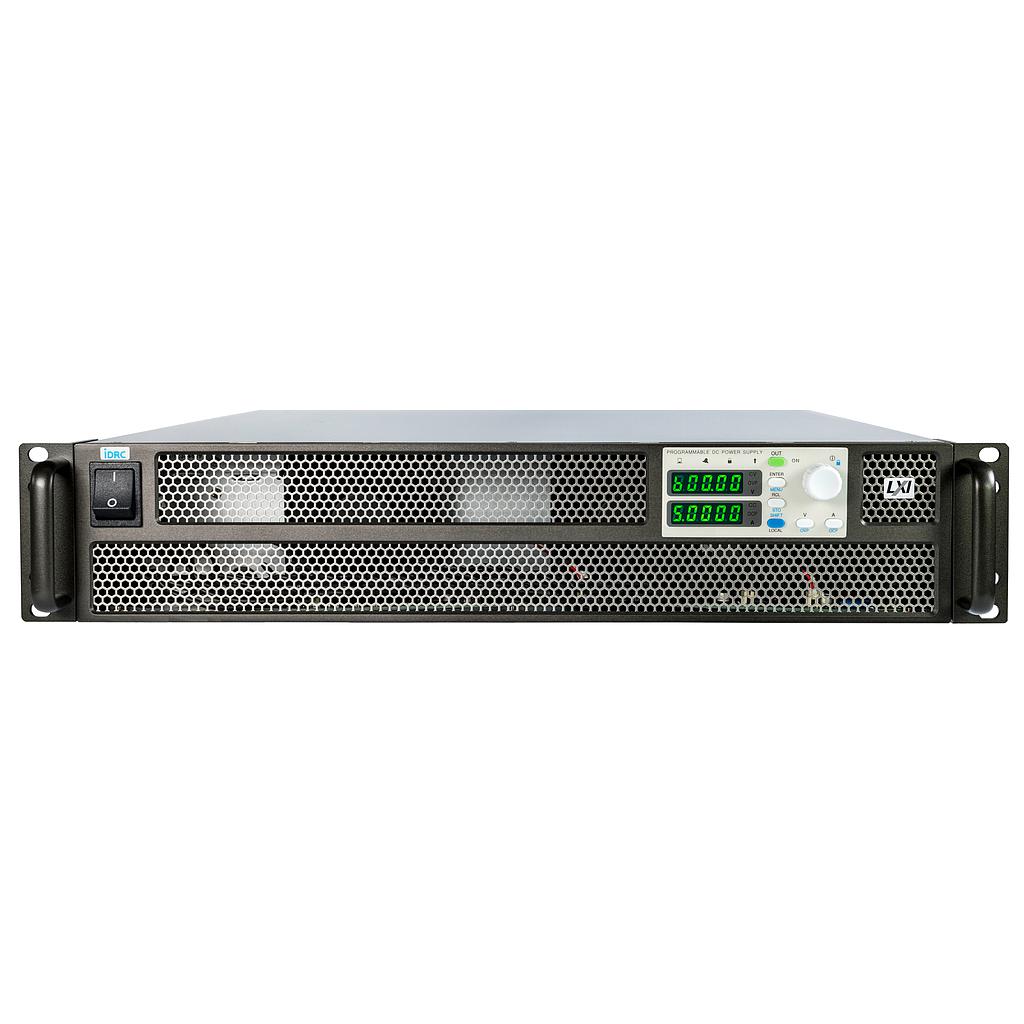

iDRC DSP-150-020HR Programmable DC Power Supply (3000W, 150V, 20A)

Output power: 3000W

Output

Voltage: 0 - 150 V

Current: 0 - 20 A

Input

Input voltage: type. 190~240Vac, 50/60Hz

Input current (Full load): 230Vac - 15.6A

Inrush current: 230Vac <65A

Line regulation

0.05%+mV: 17

0.1%+mA: 4.2

 Load regulation

0.05%+mV: 27.5

0.1%+mA: 9.4

Efficiency: 82% ‒ 88%

Power Factor (PF): 0.99 (at 115Vac, rate output)

Withstand voltage

Input-Output - AC2000V:1 minute

Input-Ground - AC2000V:1 minute

Weight: 2U type : approx. 15.1 kg

Noise: <70 dB(A)

Operating environment: Temperature : 0~50℃ ; Humidity : 30%~90% RH(no condensation)

Storage environment: Temperature : -20~70℃ ; Humidity : 10%~90% RH (no condensation)
