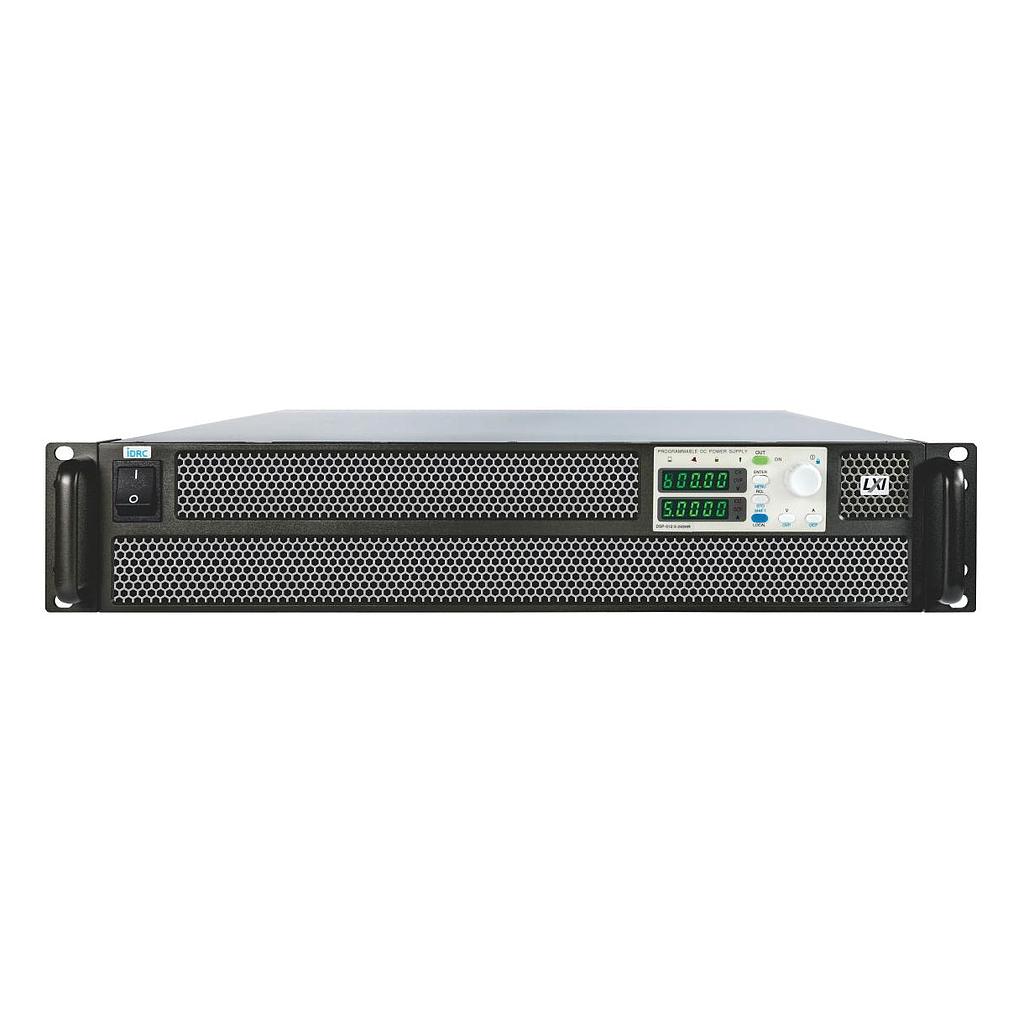

iDRC DSP-300-010HD Programmable DC Power Supply (3000W, 300V, 10A)
Manufacturer: iDRC Model: DSP-300-010HD - Contact
Output power: 3000W
Output
Voltage: 0 - 300 V
Current: 0 - 10 A
Input
Input voltage: type. 190~240Vac, 50/60Hz
Input current (Full load): 230Vac - 15.6A
Inrush current: 230Vac <65A
Line regulation
0.05%+mV: 32
0.1%+mA: 3.1
Load regulation
0.05%+mV: 50
0.1%+mA: 7.2
Efficiency: 82% ‒ 88%
Power Factor (PF): 0.99 (at 115Vac, rate output)
Withstand voltage
Input-Output - AC2000V:1 minute
Input-Ground - AC2000V:1 minute
Weight: approx. 15.1 kg
Noise: <70 dB(A)
Operating environment: Temperature : 0~50℃ ; Humidity : 30%~90% RH(no condensation)
Storage environment: Temperature : -20~70℃ ; Humidity : 10%~90% RH (no condensation)
Catalog
Options
DSP-OPT-19HUR: 1UH, 19” rack mount kit
DSP-OPT-19HU2: 1UH x2 19” rack mount kit
DSP-OPT-191U: 1U 19" rack mount kit
DSP-OPT-192U: 2U 19" rack mount kit
DSP-OPT-488HD: GPIB ( IEEE-488.2) interface (Note 4)
DSP-OPT-LXIA4: LXI interface (Note 4)
DSP-OPT-USB: USB interface adapter
DSP-OPT-ISO4: Optional Isolated analog interface
DSP-OPT-PAR: Socket board for convenient wiring when parallel
DSP-OPT-SER: Socket board for convenient wiring when series
DSP-OPT-CAB22: DSP-HD/HR AC input cable, 3 x 12AWG(2 wires + G), 2m (For 1500W / 3000W)
DSP-OPT-CAB50: Cable for Analog Programming/Parallel/Series operation, 25cm
