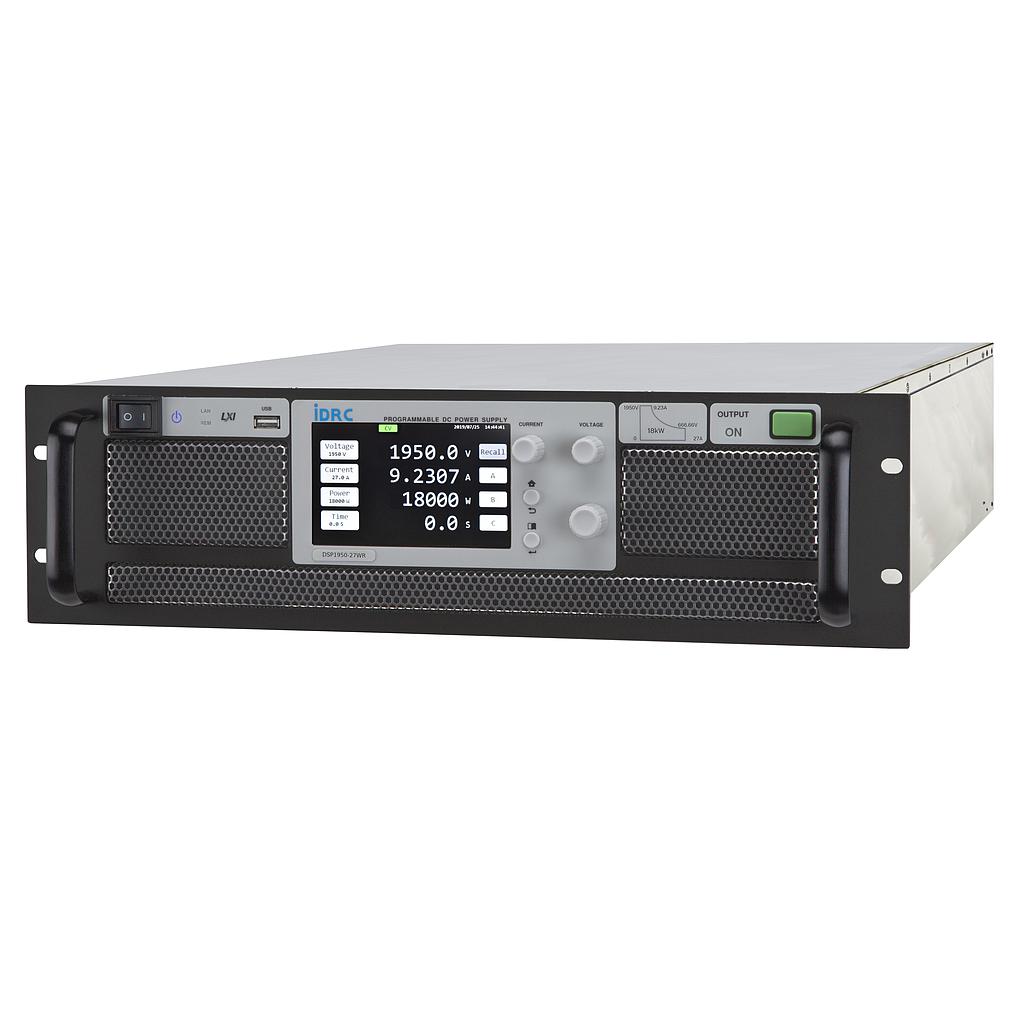

iDRC DSP500-90WR Wide Range Programmable DC Power Supply (15kW, 500V, 90A)

Output voltage

Rated value (V1): 0 ~ 500V

Settable range: 0 ~ 525V

Output current

Rated value (A1): 0 ~ 90A

Settable range: 0 ~ 94.5A

Output power

Rated value: 0 ~ 15kW

Settable range: 0 ~ 15300W

Internal resistance

Adjustment range: 0 ~ 5.5556Ω

Insulation

Primary - Chassis: 2.5 kV DC

Primary - Secondary: 2.5 kV DC

Secondary - Chassis: 1000VDC

Operating temperature: 0°C ~ 50°C

Humidity: 30%RH ~ 80%RH (no condensation) Max 80% RH up to 30°C, linear decrease to 50% RH at 40°C

Storage temperature: -20°C ~ 70°C

Input

Input voltage range: 180VAC ~ 460VAC , Optional 480VAC (type:432VAC ~ 528VAC)

Input frequency range: 47Hz ~ 63Hz

Current (Maximum): 60A / Phase (Input 3-phase 180V)

Inrush current (Maximum): 99A / Phase (Input 3-phase 460V)

Input Power (Maximum): 18kVA

Interface

Standard: LAN, J1

Optional: Analog, RS-485, GPIB

Size and Weight

Total (WxHxD): 482 x 132 x 765.1 mm

Weight (kg): 43.6
