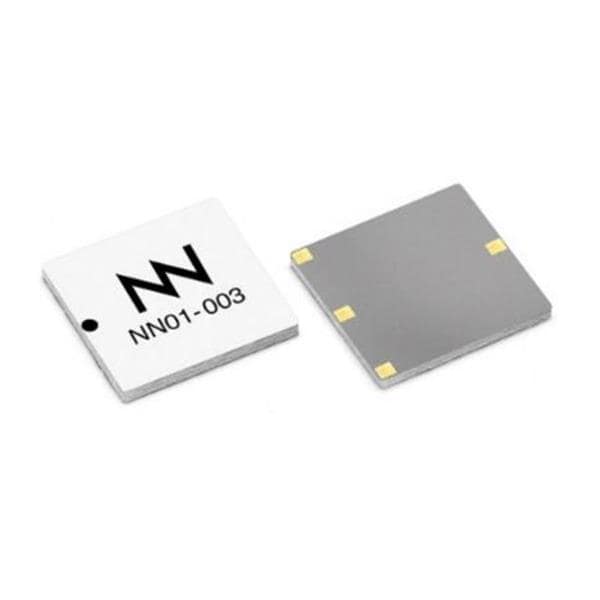

Ignion NN01-003 Passive Antenna Dual-band Reach Xtend 2.4 & 5 GHz please refer here for design assistance at http://ignion.io/fast-track-project/
Manufacturer: Ignion Model: NN01-003 - Contact
Gain: 3.9 dBi, 9 dBi
VSWR: 2:1
Style: Rectangular
Width: 10 mm
Height: 0.9 mm
Length: 10 mm
Impedance: 50 Ohms
Polarization: Linear
Mounting Style: PCB Mount
Electrical Type: Monopole
Number of Bands: 2 Band
Center Frequency: 2.45 GHz, 5.3875 GHz
Mechanical Style: Chip
Maximum Frequency: 5.875 GHz
Minimum Frequency: 2.4 GHz
Termination Style: SMD/SMT
Moisture Sensitive: Yes
Protocol - WiFi - 802.11: 802.11 a/b/g/n, WiFi, WLAN
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
