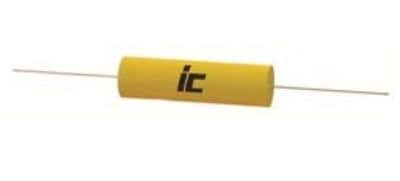

Illinois Capacitor 474MWR100K Metallized Polyester Film Capacitors 0.47uF 100V 10%
Manufacturer: Illinois Capacitor Model: 474MWR100K - Contact
ESR: 3.01 Ohms
Life: 2000 Hour
Length: 15.5 mm (0.61 in)
Diameter: 7 mm
Tolerance: 10 %
Dielectric: Polyester
Capacitance: 0.47 uF
Unit Weight: 1.169 g
Lead Diameter: 0.6 mm
Number of Pins: 2 Pin
Capacitance - nF: 470 nF
Capacitance - pF: 470000 pF
Termination Style: Axial
Voltage Rating AC: 63 VAC
Voltage Rating DC: 100 VDC
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
