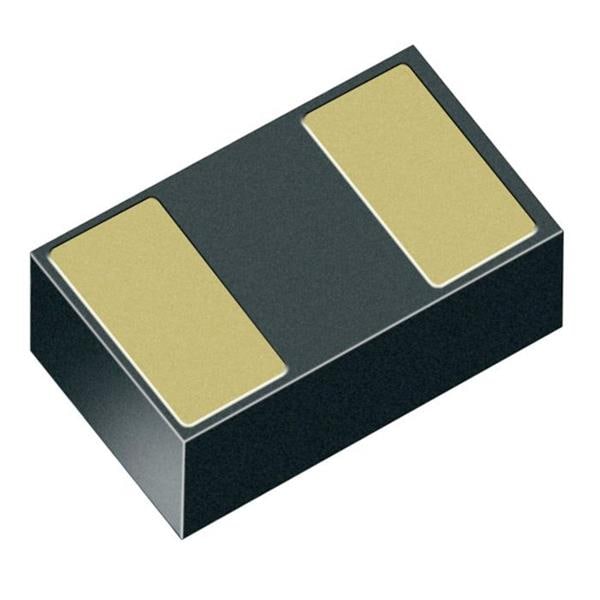

Infineon BAT 15-02LRH E6327 Schottky Diode Silicon Schottky Diodes 4V 110mA
Manufacturer: Infineon Model: BAT 15-02LRH E6327 - Contact
Width: 0.6 mm
Height: 0.35 mm (Max)
Length: 1 mm
Technology: Si
Unit Weight: 0.510 mg
Configuration: Single
Mounting Style: SMD/SMT
If - Forward Current: 110 mA
Ir - Reverse Current: 5 uA
Vf - Forward Voltage: 320 mV
Vr - Reverse Voltage: 4 V
Pd - Power Dissipation: 100 mW
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Vrrm - Repetitive Reverse Voltage: 4 V
