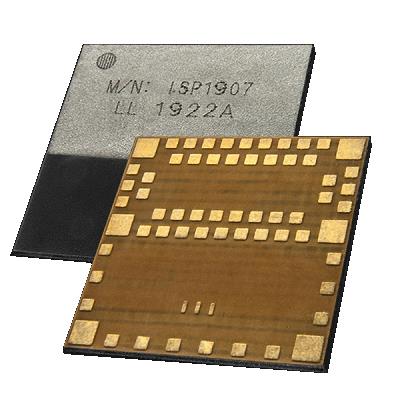

Insight SiP ISP1907-HT-R2 Bluetooth Modules Built-in Antenna Bluetooth 5.1 Direction Finding Modules

Core: ARM Cortex M4

Range: 400 m

Width: 8 mm

Height: 1 mm

Length: 8 mm

Antenna: Built-In

Protocol: Bluetooth 5.1

Data Rate: 2 Mb/s

Frequency: 2.43 GHz

Dimensions: 8 mm x 8 mm x 1 mm

Memory Size: 512 kB, 128 kB

Sensitivity: - 94 dBm

Output Power: 8 dBm

Interface Type: ADC, I2C, ISC, NFC, PDM, UART, USB

Mounting Style: SMD/SMT

Frequency Range: 2.36 GHz to 2.5 GHz

Moisture Sensitive: Yes

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.7 V

Antenna Connector Type: NFC

Operating Supply Voltage: 1.7 V to 3.6 V

Supply Current Receiving: 6 mA

Supply Current Transmitting: 6.1 mA

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
