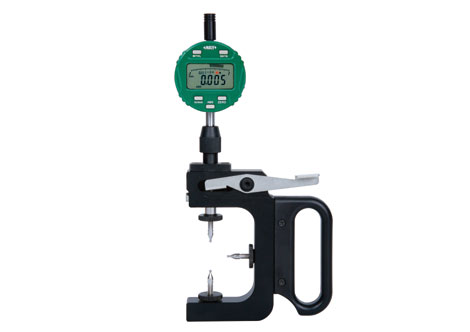

INSIZE 2165-100 Thread/Lead screw pitch diameter snap gages (80-100mm)
Manufacturer: INSIZE Model: 2165-100 - Contact
Range: 80-100mm
Accuracy: ±5μm
A: 192mm
B: 170mm
C: 68mm
L: 140mm
Ball tip diameter can be customized according to workpieces. Diameter of trapezoidal screw or external thread ball tips:
ØD=0.5 x pitch P/cos (thread angle a/2).
Ball tips diameter ØD of ball screw is corresponding steel ball specification
Probe retracting range: 3mm, measuring force: 20N Repeatability: 2μm
