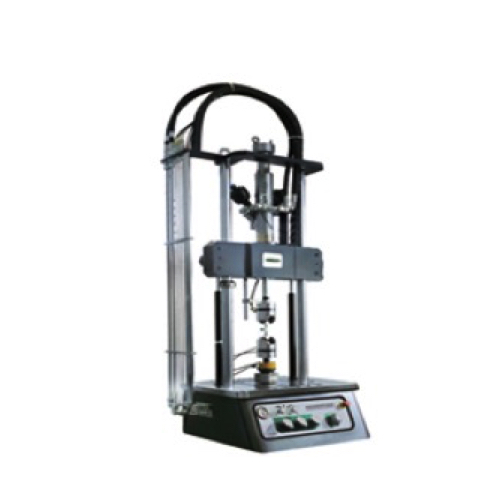

INSIZE FTM-U10 Servohydraulic Fatigue Testing Machines (10kN)

Max. test force: 10kN

Accuracy of static force measurement: ±0.5% of indicated value

Accuracy of dynamic force measurement: ±2% of indicated value

Range of test force: 0.5%~100%FS

Actuator stroke*: ±75mm

Accuracy of displacement measurement: linearity error <40µm, repeatability <0.001%FS

Range of frequency: 0~100Hz

Concentricity: ≤5%

Vertical test space*: 1100mm

Effective test width*: 460mm

Test waveform: sine wave, square wave, triangle wave, ramp wave, random wave, spectral loading, sweep frequency, etc.

Stiffness: 1.25×10⁸N/m

Dimension (W × D × H): 800×500×2500mm

Weight: 150kg

Power supply: AC 380V, 30, 50Hz

*Can be customized according to test requirements
