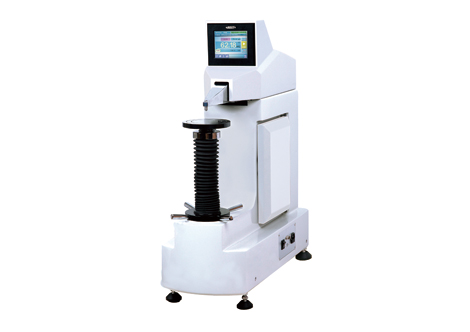

Туре:Superficial Rockwell
Hardness scale with indenter included:HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Hardness scale with optional indenter:HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y
Preliminary test force:29.4N/3kgf (for Superficial Rockwell)
Test force:147N (15kg), 294N (30kg), 441N (45kg)
Stage elevation:manual
Load control:automatic (load/dwell/unload)
Load dwell time:2~250 seconds, can be set
Resolution:0.01 HR
Max. workpiece height:300mm
Max. testing width:220mm
Max. bore depth:130mm
Min. testing inner diameter:30mm
Power supply:110/220V, 50/60HZ
Dimension:690×280×860mm
Weight:85kg
Standard Delivery
Code:HDT-DM300
Main unit:1pc
Diamond indenter:1pc
Ø1.5875mm carbide ball indenter:1pc
Ø150mm flat anvil:1pc
V-type anvil:-
Hardness test block HRC35~55:-
Hardness test block HRC65~70:-
Hardness test block HRB85~100:-
Hardness test block HRA80~88:-
Hardness test block HR15N89~91:1pc
Hardness test block HR15T88~93:1pc
Hardness test block HR30N74~80:1pc
Hardness test block HR30T70~82:1pc
Computer software and USB cable:1pc
Anti-dust cover:1pc
■Full closed-loop precise control, real-time monitoring
of test force, greatly increase the accuracy
■ Dolphin-nose structure indenter, more measuring space Measurements on 30 Rockwell and Surface Rockwell scales
■ Convertible to various hardness standards such as HB, HV, HLD, HK and tensile strength
■ 5000 sets of data are stored independently in the mainframe, which can be accessed at any time
■Mean, variance, maximum and minimum statistics are available
■ USB communication port, can be connected to an external computer, measurement data Excel output Correction function automatically corrects the measurement results of curved parts
■ Conforms to ASTM E-18, ISO 6508
