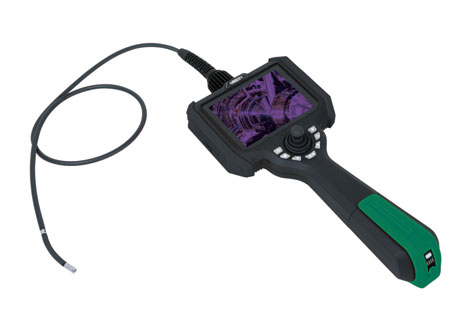

Camera
diameter (ØD):Ø6mm
pixel:1M
lens length:13±0.5mm
depth of field (DOF):10-200mm (optional 50mm~∞)
bend direction:four directions
bend ramher (α):±150°
angel of view (β):120°
lighting:rear UV fiber optic illumination
ultraviolet wavelength:365nm
waterproof grade:IP67
Cable:
length:1m
type:soft (tungsten wire weaved cable)
Main unit:
display:5" HD IPS display screen
file format:picture: JPG, video: AVI
image control:freezing, zoom, flip over, playback and analog ruler
memory:memory card
output:USB, HDMI, WIFI
power supply:rechargeable lithium battery (working time ≥ 4hours), AC/DC adapter (for continuous working)
weight:1000g
Standard Delivery
Main unit (cable): 1 pc
32G SD card: 1 pc
Card reader: 1 pc
USB cable:1 pc
Tripod:1 pc
AC/DC adapter:1 pc
Operation Environment:
Main unit: -10~50°C, no preheat
Operation temperature: -20~70°C
Storage temperature: -20~60°C
Relative humidity: maximum 90%, no condensation
■ Motorized zoom objective
■ Can import 3D drawings
■ Vision mearsurement and probe mearsurement can be used in the same program Granite platform, column and stage, more stable
■ Double close-loop motion control, with precise positioning performance in high-speed movement
■ Panasonic servo control motor
■ 40 independent surface light source, 200-step adjustment
■ Servo motors for X, Y, Z axis
