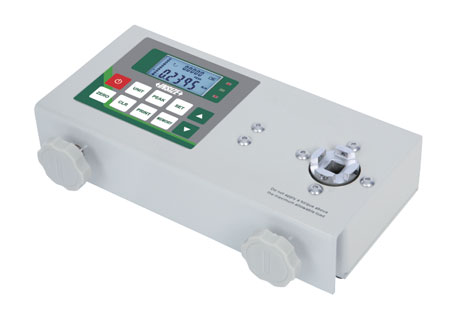

INSIZE IST-HP20 Torque tester (20 N.m)
Manufacturer: INSIZE Model: IST-HP20 - Contact
Maximum range: 20 N.m
Resolution: 0.01 N.m
Accuracy: ±1%
Maximum test speed: 3000rpm
Number of memory: 10 groups
Power supply: built-in rechargeable battery, can be used for 40 hours
Dimension: 230x110x50mm
Weight: 2.4 kg
Standard Delivery:
Main unit:1pc
Buffer:1pc
Adapter: 4pcs
Power adapter: 1pc
RS232 cable and software:1pc
■ For testing electric, pneumatic and manual torque screwdrivers
and torque wrenches and other torque tools
■Clockwise and counter-clockwise operation
■ Peak and track working modes
■ High-definition display, backlighting available
High sampling frequency for accurate peak capture
Unit: N.m, Ib.in, kgf.cm
■ Upper and lower limits can be set, automatic audible and visual alarm with red and green indicator lights and buzzer
■ Store 10 sets of data and calculate the average value
■ Serial RS232 output, connect to PC to view torque curves by test software
■ Automatic zero setting, automatic shutdown
