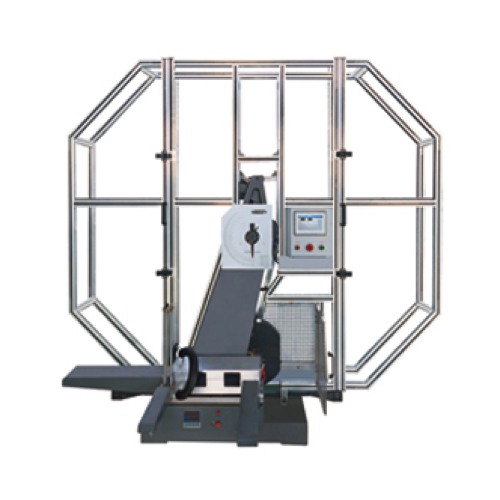

INSIZE ITM-T450J Low Temperature Automatic Impact testing Machines (0~450 J, 3 J)

Impact Energy: 450 J

Dial Range: 0~450 J

Dial Graduation: 3 J

Pendulum Moment: M=241.1543N·m

Pendulum Preparing Angle: 150°

Distance Between Pendulum Shaft Center and Specimen Center: 750 mm

Impact Speed: 5.24 m/s

Span of Specimen Seat: 40 mm

End Face Radius of Specimen Seat: R (1.0~1.5) mm

Radius of Impact Blade: R (2.0~2.5) mm

Inclination Angle of Support Surface of Specimen Seat: 11° ±1°

Angle of Impact Blade: 30° ±1°

Thickness of Impact Blade: 16 mm

Range of Measuring Angle: 0~360°

Angle Resolution: ≤0.06°

Specimen Size: 10×10×55 mm

Base Size: 960×650 mm

Dimension of Main Body: 2100×835×2200 mm

Weight: 900 kg

Power Supply: AC 380V, 30, 50 Hz

Power: 1.5 kW

Standard Delivery:

Main Unit: 1 pc

Control Cabinet: 1 pc

Digital Display Screen: 1 pc

Sample Feeding and Positioning Device: 1 pc

Sample Recovery Device: 1 pc

Simply Supported Beam Fixture (including Jaws, Anvil): 1 set

Pendulum: 450J Pendulum and 150J Pendulum

Span Aligner: 1 pc

Tongs: 1 pc

Safety Cover: 1 set

Software: 1 set

Computer: 1 pc

Printer: 1 pc
