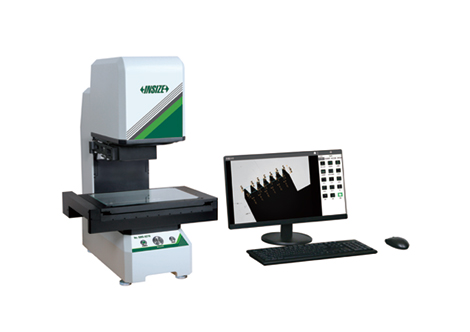

Specification
Optical lens: dual-field dual-telecentric low-distortion lens
Measurement range: wide view field 210 × 130mm
Measurement Accuracy
Without stitching: ±2µm
With stitching: ±(4+0.02L)µm
Repeatability
Without stitching: ±1µm
With stitching: ±2µm
Measurement range: small view field 200 × 100mm
Measurement Accuracy
Without stitching: ±0.7 µm
With stitching: ±(2.7+0.02L)µm
Repeatability
Without stitching: ±0.25µm
With stitching: ±1.25µm
Illumination system
transmission light: telecentric illuminator, green light
surface light: vertical illuminator, high angle ring white light
vertical illuminator, 4-zone low and medium angle ring white light (eletric)
vertical illuminator, circular (directional) green light (eletric)
coaxial light: vertical Illuminator, white light
Max. weight of workpiece: 5kg
Measurement time: <2s
Measurement data: 2D measurement
Environmental requirement: temperature: 20°C±2°C, relative humidity: 30%~80%, vibration: <0.002g, less than 15Hz
Power Supply: 220V, 50Hz, 600W
Dimension (L×W×H): 460×515×740mm
Weight: 45kg
Standard Delivery:
Main unit:1pc
Computer: 1pc
Software:1pc
■ One or more workpieces can be measured by one step operation Place workpieces at any position
■ Focus and measure automatically
■ Measurement of 999+dimensions and 300+workpieces
■ Suitable for parts with high precision for medium and small sizes
Software (included)
■ Automatically measure widths, holes, rings, angles at the same time, simple and efficient
■ Measuring result can be stored automatically. OK Items and NG items can be counted automatically
