Specification
Measuring range
Opacity Ns:0~99.9%
Light absorption coefficient K:0~16.0m^(-1)
Rotary speed:300~8000 rpm
Oil temperature:0~120°C
Resolution
Opacity Ns:0.1%
Light absorption coefficient K:0.01m^(-1)
Rotary speed:1 rpm
Oil temperature:1°C
Accuracy
Opacity Ns:±2%
Light absorption coefficient K:±0.05m^(-1)
Rotary speed:±1%
Oil temperature:±2°C
Warm-up:15min
Effective length of optical path:215mm
Equivalent length of optical path:430mm
Environment:
Temperature:5~40°C
Relative humidity:5~95%RH
Power:AC220V 50Hz
Dimension:
Control unit:370x280x220mm
Measurement unit:435x230x360mm
Weight:
Control unit:5.5kg
Measurement unit:6.5kg
Standard Delivery:

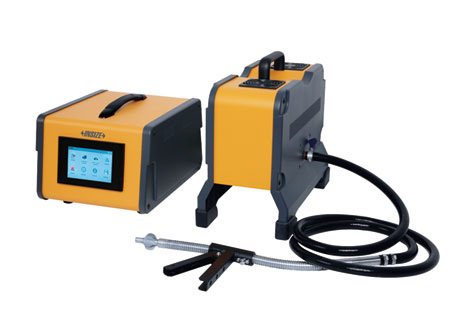

Main unit:
Control unit:1pc
Measurement unit: 1pc
Sampling probe:1pc
Connection cable:1pc
Standard filter:1pc
■ According to ISO11614
■ Used to test the visible contarninants in emissions (exhaust srnoke) from the compression combustion (diesel) engine. Suitable for environmental protection, motor vehicle testing, engine manufacturing, automobile manufacturing and automobile repair
■ LCD display and touch screen, can test "opacity" and "light absorption coefficient", simple and intuitive
■ With "free acceleration test" and "transient test" function, automatic data processing
■ Use sampling (split) test and "air curtain" protection technology, prevent the optical system from being polluted by exhaust smoke
■ Test chamber is controlled under constant temperature, prevent the moisture condensation and temperature fluctuation for accurate measurements
■ Automatic preheating and zeroing
■ RS232 serial port communicates with external computer
