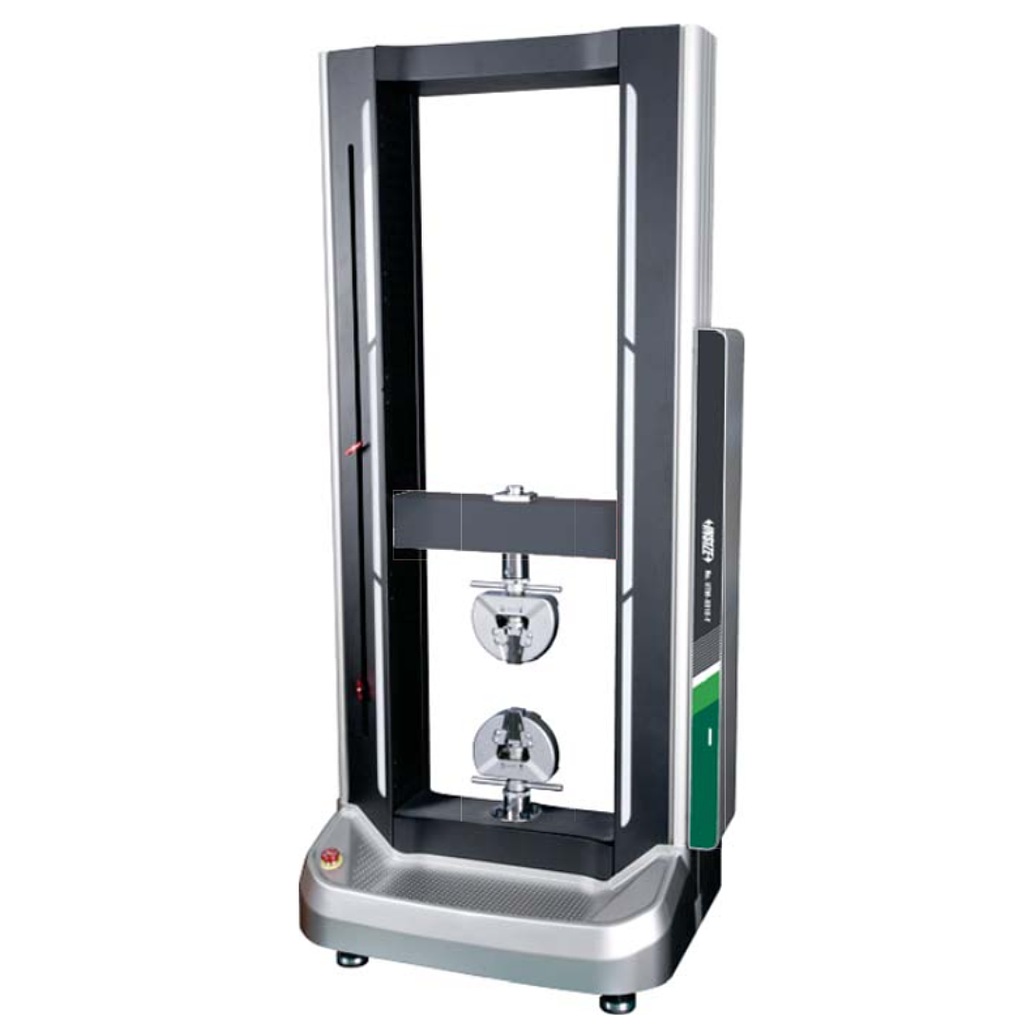

INSIZE UTM-X010 Electronic Universal Testing Machines (10kN)

Maximum test force: 10kN

Accuracy class: 0.5 class

Accuracy of test force: ±0.5% of indicated value

Range of test force: 0.2%-100%FS

Test force resolution: 0.02N

Crossbeam displacement accuracy: ±0.1% of indicated value

Crossbeam displacement resolution: 0.1µm

Velocity accuracy:  ±0.1% of indicated values

Range of speed adjustment: 0.001-1000mm/min

Effective test width: 420mm

Vertical test space

Standard model: 1200mm

Heighten 250mm: 1450mm

Heighten 500mm: 1700mm

Dimension (WxDxH)

Standard model: 748x582x1600mm

Heighten 250mm: 748x582x1850mm

Heighten 500mm: 748x582x2100mm

Weight

Standard model: 160 kg

Heighten 250mm: 185 kg

Heighten 500 mm: 210 kg

Power supply: AC220V, 50Hz, 1kW

Environment requirements: temperature: 5-40°C; humidity level: 5-85%RH, non-condensing, no vibration
