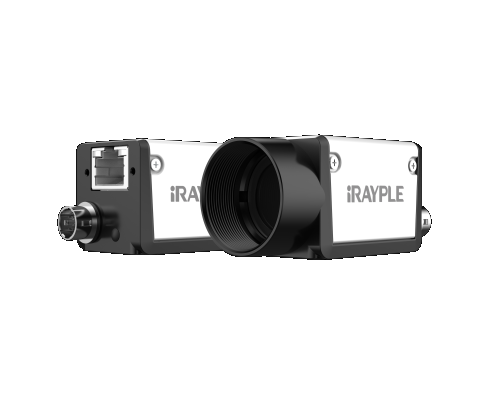

iRAYPLE A3504MG000E Area Scan Camera (AR0521; 2592 × 1944; Mono)
Manufacturer: iRAYPLE Model: A3504MG000E - Contact
Basic
Sensor: AR0521
Image Sensor: 1/2.5"CMOS
Shutter: Rolling
Resolution: 2592 × 1944
Frame Rate: 23 fps
Bit Depth: 12
Mono/Color: Mono
Pixel Size: 2.2 μm × 2.2 μm
Pixel: 5.0 MP
S/N Ratio: 40 dB
WDR: 74.3 dB
Image Format: Mono8/10/10Packed/Mono12/Mono12Packed；
Binning: Support
ROI: Support
X Flip: Support
Y Flip: Support
Gain: 1～32
Gamma: From 0 to 4, support LUT
Exposure Time: 21.5 μs～1 s
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 256 MB
Port
Port: GigE, PoE
GPIO Interface: 1× 6 pin Hirose: 1× Opto-isolated input, 1× Opto-isolated output, 1 configurable input and output
Lens Mount: C-mount
Power
Power Supply: PoE/ DC 9V~24V power supply via Hirose interface
Power Consumption: 12 V≈2.8 W
Structure
Product Dimensions: 29 mm × 29 mm × 42 mm (not including lens mount and rear case connector)
Net Weight: 88 g
Environment
Storage Temperature: - 30℃～+80℃
Operating Temperature: - 30℃～+50℃
