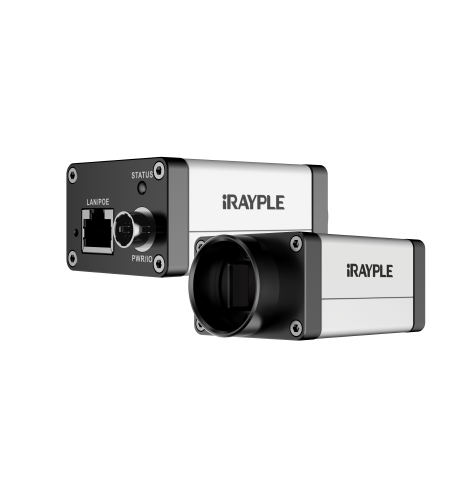

iRAYPLE A7A20MG9E Area Scan Camera (IMX304; 4096 × 3000; Mono)

Basic

Sensor: IMX304

Image Sensor: 1.1''CMOS

Shutter: Global

Resolution: 4096 × 3000

Frame Rate: 9 fps

Bit Depth: 12

Mono/Color: Mono

Pixel Size: 3.45 μm × 3.45 μm


Pixel: 12.29MP

S/N Ratio: >38dB

Dynamic Range: 70dB

Image Format: Mono8/10/10Packed/12/12Packed

Binning: Support

ROI: Support

X Flip: Support

Y Flip: Support

Gain: 1~32

Gamma: 0~4，支持LUT

Exposure Time: 48μS~1S

Trigger Mode: Support Software Trigger/Hardware Trigger/Free Run Mode;

SPC: Support

Performance

User Setting: Support two sets of user-defined configurations

Image Buffer: 256MB

Port

Port: GigE, PoE

GPIO Interface: 1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output

Lens Mount: C-mount

Power

Power Supply: PoE/ DC 9V~24V power supply via Hirose interface

Power Consumption: 12V≈3.2W

Structure

Product Dimensions: 29mm*44mm*58mm (not including lens mount and rear case connector)

Net Weight: 100 g

Environment

Storage Temperature: - 30℃~+80℃

Operating Temperature: - 30℃~+50℃
