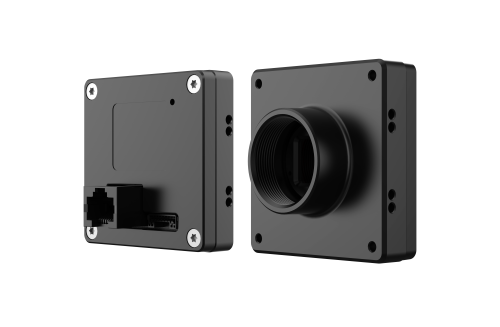

iRAYPLE AB3600MG000E Board-level camera (IMX178; 3072 × 2048; Mono)

Basic

Sensor: IMX178

Image Sensor: 1/1.8"CMOS

Shutter: Rolling

Resolution: 3072 × 2048

Frame Rate: 18 fps

Bit Depth: 10

Mono/Color: Mono

Pixel Size: 2.4 μm × 2.4 μm


Pixel: 6 MP

S/N Ratio: ＞38 dB

Dynamic Range: 60 dB

Image Format: Mono8/10/10Packed/12/12Packed

Binning: Support

ROI: Support

X Flip: Support

Y Flip: Support

Gain: 1~32

Gamma: From 0 to 4，support LUT

Exposure Time: 25μ s~1 s

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

SPC: Support

Performance

User Setting: Support two sets of user-defined configurations

Image Buffer: 256 MB

Port

Port: GigE

GPIO Interface: 1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output,

Lens Mount: C-mount

Power

Power Supply: DC power supply by 8 pin Socket connector, with voltage range from 9V to 24V

Power Consumption: 12V≈3.4W

Structure

Product Dimensions: 55 mm × 55 mm × 14 mm(not including lens mount and rear case connector)

Net Weight: 60 g

Environment

Storage Temperature: -30°C～+80°C

Operating Temperature: -30°C～+50°C
