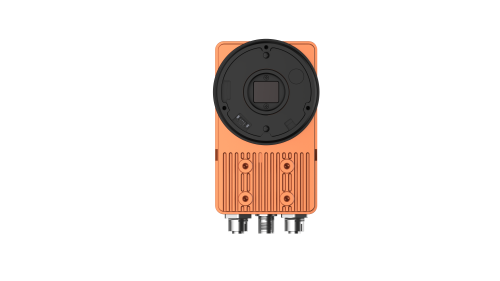

iRAYPLE DH-MV-SI5500MG002E Smart Camera (2/3"CMOS; 2448 × 2048; Mono)

Basic

Resolution: 2448 × 2048

Max. Frame rate: 35 fps

Sensor Type: 2/3"CMOS

Shutter Mode: Global

Pixel Size: 3.45 μm × 3.45 μm

Mono/Color: Mono

Lens Mount: C-MOUNT

Trigger Mode: Software trigger/Hardware trigger/Free run mode

Software: MVP

Certifications: CE，FCC，KC

Port

Connector: 3 physical interface: 1 GigE, 1 GPIO, 1 VGA & 1 USB port

Network Port: 1Gbps Ethernet

GPIO Interface: 12 pins IO interface: 3 input without opto isolation, 3 output without opto isolation

Communication Mode: RS232 or RS485，1Gbps Ethernet

Communication protocol: SDK，Serial，TCPServer，TCPClient，Profinet，Modbus TCP

LED Indicator: 5 status indicators: 1 system, 2 network and 2 user configurable indicators

Power

Power Supply: DC24V

Power Consumption: ≤30W

Structure

Product Dimensions: 132.2mm*69mm*62mm

Packaging Dimensions: 190 mm × 179 mm × 127 mm

Net Weight: ＜600 g

Gross Weight: ＜800 g

Protection: IP67

Casing Material: Aluminium alloy

Environment

Operating Temperature: -20℃～+50℃

Operating Humidity: 20%～95%，No condensation

Storage Temperature: -30℃～+80℃
