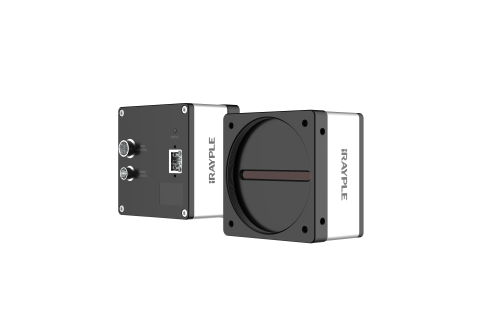

iRAYPLE L5082MG170E Line Scan Camera (8 K; 8192 × 1; Mono)

Basic

Sensor: 8 K

Image Sensor: CMOS

Shutter: Global

Resolution: 8192 × 1

Line Rate: 13 kHz(After compression the line frequency is 58k）

Bit Depth: 12

Mono/Color: Mono

Pixel Size: 7 μm × 7 μm


S/N Ratio: 46dB

Dynamic Range: 65.9 dB

Sensitivity: 77

Image Format: Mono8/10/12/10Packed/12Packed

ROI: Support

X Flip: Support

Gain: 1~32

Gamma: From 0 to 4，support LUT

Exposure Time: 2 μs~100 ms

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

FPN: Support

Performance

User Setting: Support two sets of user-defined configurations

Image Buffer: 512MB data cache

Port

Port: GigE

GPIO Interface: 2 differential/single-end input, 2 differential/single-end output, 1 differential/single-end configurable input/output and 1 GPIO.

Lens Mount: M72 x 0.75

Power

Power Supply: DC 12~24V power supply via 6-pin Hirose connector

Power Consumption: 12 V ≈ 4.5 W

Structure

Product Dimensions: 80mm*80mm*48mm(Not including rear case connector)

Net Weight: 390 g

Environment

Storage Temperature: - 30℃~+80℃

Operating Temperature: - 30℃~+50℃
