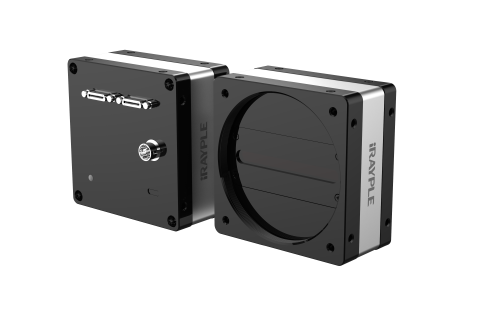

iRAYPLE L5162MK170E Line Scan Camera (16 K; 16384 × 1; Mono)

Basic

Sensor: 16 K

Image Sensor: CMOS

Shutter: Global

Resolution: 16384 × 1

Line Rate: 50 kHz

Bit Depth: 12

Mono/Color: Mono

Pixel Size: 3.5 μm × 3.5 μm


Pixel: 16384 × 1

S/N Ratio: 44 db

WDR: 64 db

Image Format: Mono8/10

Binning: Support

ROI: Support

X Flip: Support

Gain: 1~32

Gamma: From 0 to 4，support LUT

Exposure Time: 3 μs~100 ms

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

FPN: Support

Performance

User Setting: Support two sets of user-defined configurations

Pixel Clock: 34/51/68/85MHz

Port

Port: CameraLink

Lens Mount: M72

Power

Power Supply: DC12~24V power supply

Power Consumption: 6 W

Structure

Product Dimensions: 80 mm × 80 mm × 39.5 mm (Not including rear case connector)

Net Weight: 360 g

Environment

Storage Temperature: - 30℃~+80℃

Operating Temperature: - 30℃~+50℃
