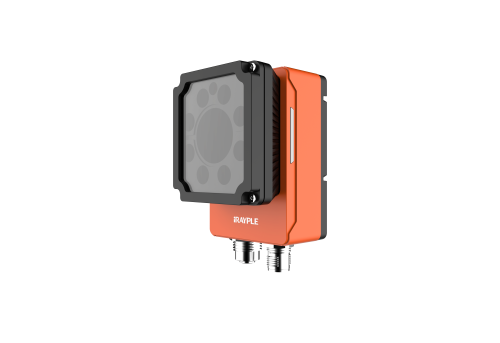

iRAYPLE R5016MG-06M-WGG01E Code Reader (1440 × 1080; 90 codes/s)

Basic

Resolution: 1440 × 1080

Max. Frame rate: 60 fps

Shutter Mode: Global

Mono/Color: Mono

Lens Mount: M12, auto focus

Trigger Mode: Software trigger/External trigger/Free run modes

Certifications: CE，KC

Function:

lD: Code 39/Code 93/Code128/CodaBar/EAN8/EAN13/UPCA/UPCE/ITF25/2of5（Industrial2of5）/standard25/GS1-128 etc. and 2D: Data Matrix/MQR/GS1 DM/GS1QR etc.;

Quality Evaluation: ISO/IEC 29158(AIM-DPM), ISO/IEC 15415, ISO/IEC 15416）

Performance

Focal Length: 6 mm

Working Distance: 80-1500 mm

Field of View: 170×127 mm@WD200 mm

Max. Read Speed: 90 codes/s

Max. Operating Speed: 3 m/s

Min. Resolution: 1D code 0.06 mm/ 2D code 0.13 mm

Light Source Type: White

Port

Connector: 2 Industrial connectors support GigE and GPIO

Network Port: GigE

GPIO Interface: RS232, 2 Opto-isolated inputs and 3 Opto-isolated outputs

Communication Mode: RS232, Ethernet

Communication protocol: SDK，TCP Client，TCP Server，FTP，RS232，Profinet、Modbus、EtherNet/IP、MC(SLMP)、FINS/UDP、FINS/TCP

LED Indicator: Power,Ethernet,Status,Result

Power

Power Supply: 9~26VDC, 2A input, suitable for industrial environment

Power Consumption: <18 W(light included)

Structure

Product Dimensions: 82 mm×55 mm×53 mm(not including connector)

Net Weight: ＜350 g

Protection: IP65

Casing Material: Aluminum alloy + Front cover

Environment

Operating Temperature: -20℃～+50℃

Operating Humidity: 20%～95%(no condensation)

Storage Temperature: -30℃～+70℃
