Wireless LAN Measurement Common Specifications
Signaling Mode:
STA: Beacon level from DUT (Input power level): -80 to +30 dBm
AP: Beacon power (Output power level): -100 to 0 dBm
Spatial Streams: SISO to 4x4 MIMO, Spatial Multiplexing, STBC
Standards: 802.11a/b/g/n/ac/ax/be
Signal Bandwidth: 20, 40, 80, 160, 320 MHz
Supported Channels:
2.4 GHz Band: 1 - 14
5 GHz Band: 36 - 173
6 GHz Band: 1 - 233
Security: Open system, WEP 64/128, WPA-PSK, WPA2-PSK, WPA3
Wireless LAN RvR Measurement Specifications
Traffic Direction: Uplink, Downlink, Bidirectional
Traffic Type: TCP, UDP
Interference Source: With any WT tester(s)
Extension Function: Ext Link

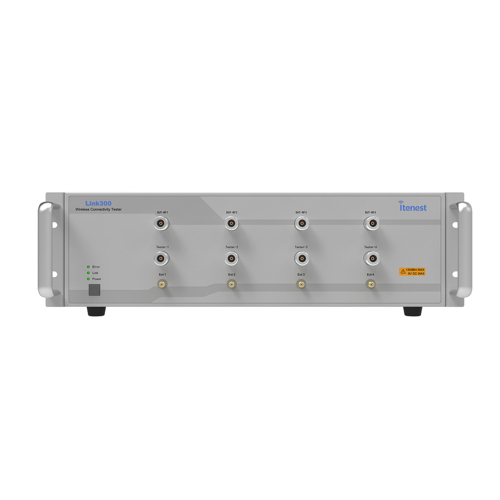

Wireless Interface: Link300 unit
Ethernet Interface: 10G/5G/2.5G/100 Mbps adaptive
General and Environmental
Attenuation Range (DUT-RF1 to RF4): 0 to 120 dB
Attenuation Resolution (DUT-RF1 to RF4): 0.25 dB
Attenuation Accuracy (DUT-RF1 to RF4): ±0.5 dB
Input/Output Return Loss (DUT-RF1 to RF4): >13 dB
Port to Port Isolation (DUT-RF1 to RF4): >120 dB
