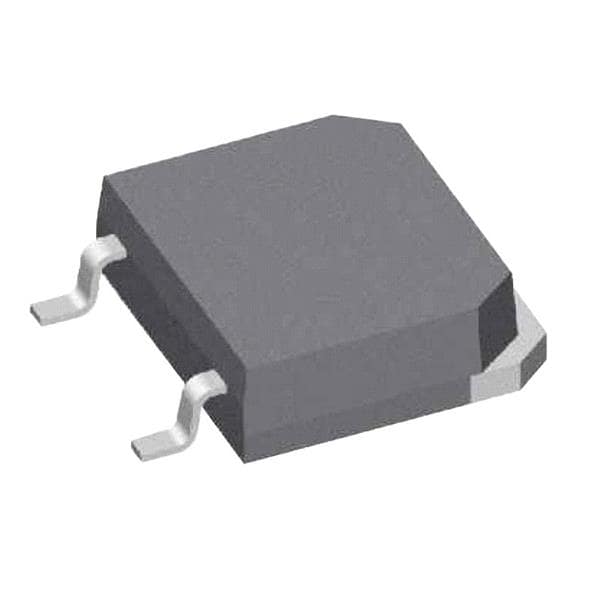

IXYS IXTT140P10T MOSFETs P-Channel: Standard MOSFET

Fall Time: 26 ns

Rise Time: 26 ns

Technology: Si

Unit Weight: 6.500 g

Channel Mode: Enhancement

REACH - SVHC: Details

Configuration: Single

Mounting Style: SMD/SMT

Transistor Type: 1 P-Channel

Qg - Gate Charge: 400 nC

Number of Channels: 1 Channel

Transistor Polarity: P-Channel

Pd - Power Dissipation: 568 W

Vgs - Gate-Source Voltage: - 15 V, + 15 V

Typical Turn-On Delay Time: 58 ns

Typical Turn-Off Delay Time: 86 ns

Id - Continuous Drain Current: 140 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Forward Transconductance - Min: 115 S

Rds On - Drain-Source Resistance: 10 mOhms

Vds - Drain-Source Breakdown Voltage: 100 V

Vgs th - Gate-Source Threshold Voltage: 4 V
