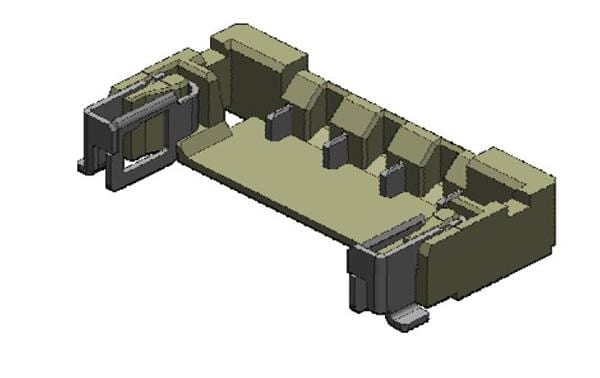

JAE Electronics ES9P004VF1R1600 Connectors ES9 4 Pin Header 3.0mm Pitch
Manufacturer: JAE Electronics Model: ES9P004VF1R1600 - Contact
Height: 3 mm
Length: 16.8 mm
Features: Upper side mating, 15 N cable lifting-direction retention strength, 2 point contact structure, 22 AWG compatible
Unit Weight: 1.486 g
Current Rating: 3 A
Wire Gauge Max: 22 AWG
Wire Gauge Min: 26 AWG
Contact Plating: Tin
Contact Material: Copper Alloy
Termination Style: SMD/SMT
Number of Positions: 4 Position
