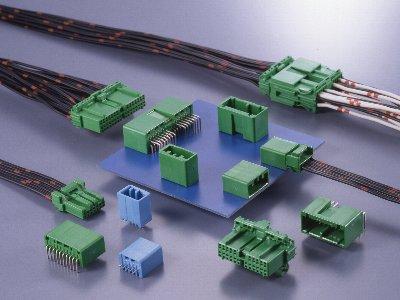

JAE Electronics IL-AG5-30SK-D3C1-D Wire Housing SOCKET 30POS DUAL STR CRIMP
Manufacturer: JAE Electronics Model: IL-AG5-30SK-D3C1-D - Contact
Pitch: 2.5 mm (0.098 in)
Gender: Receptacle (Female)
Unit Weight: 32.095 g
Contact Gender: Without Socket Contacts
Current Rating: 3 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Wire Gauge Max: 18 AWG
Wire Gauge Min: 22 AWG
Contact Plating: Tin
Housing Material: Polybutylene Terephthalate (PBT)
Wire Gauge Range: 22 AWG to 18 AWG
Termination Style: Crimp
Number of Positions: 30 Position
Insulation Resistance: 100 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
