Specifications
Nominal power: 200 W
Peak power: 150 W per tool
Selectable temperature: 90 to 450 °C / 190 to 840 °F
Idle temperature stability (still air): ±1.5 °C / ±3 °F, meets and exceeds IPC J-STD-001F
Temperature accuracy: ±3 % (using reference cartridge)
Temperature adjustment: ±50 °C / ±90 °F via station setting menu
Tip to ground voltage / resistance: Meets and exceeds ANSI/ESD S20.20 and IPC J-STD-001F
Ambient operating temperature: 10 to 40 °C / 50 to 104 °F
Connections
USB-A: Firmware update, graphics and profiles, Dino-Lite USB microscope (models AM2011, AM2111)
USB-B: PC communication
RJ12: Fume extractor, peripherals, robot
Compliance
Standards: CE compliant
ESD: Safe
Weight and Dimensions
Dimensions: 232 × 148 × 120 mm
Weight: 3.82 kg
Dimensions (inch): 9.13 × 5.83 × 4.72 in
Weight (lb): 8.41 lb
Product Composition

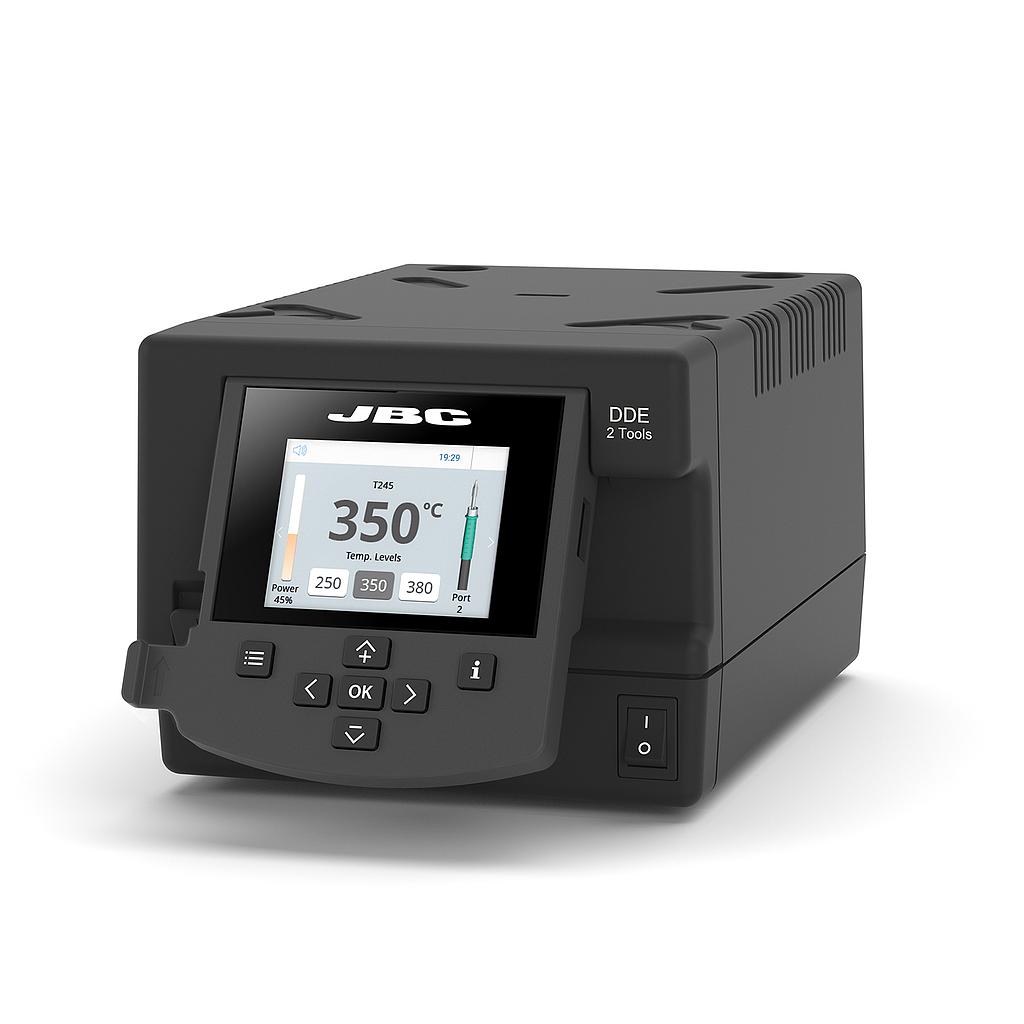

Content: 1 DDE 2-Tool Control Unit
