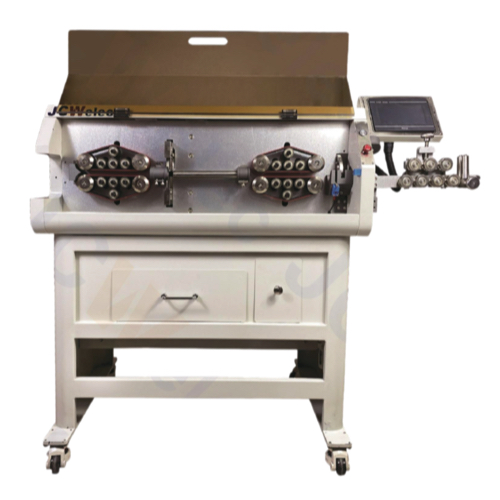

JCW JCW-CS19 Free Standing Belt-driven 120mm² Cable Cutting and Stripping Machine (10-120 mm², 1-99999.9 mm)

Function: Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed, Run-out sensor, Length correction, Safety door sensor

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Conductor cross-sections: 10-120 mm²

Cable diameter: Max 25 mm

Cutting length (L): 1-99999.9 mm

Stripping length:

  Front (right) side: 1-800 mm

  Rear (left) side: 1 - 260 mm

Feeding system: 32 rollers, belt-driven

Data library: 100 programs

Production rate: 1800 pcs/h [depends on cutting length]

Power supply: AC 110V-220V ± 10%, 50/60 Hz

Dimensions: L 1360 x W 650 x H 1450 mm

Weight: 155KG

Display: 7" color touchscreen, English / Chinese [other languages on request]
