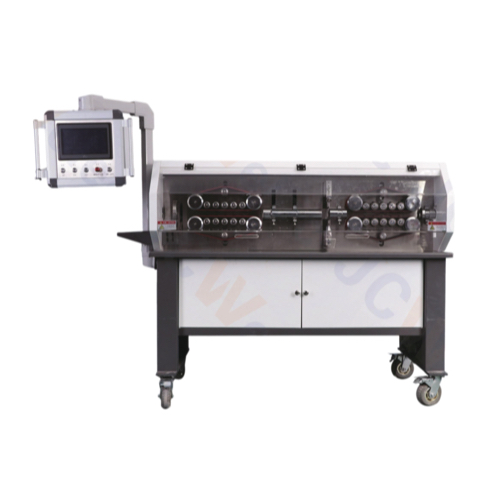

JCW JCW-CS21 300SQ Heavy Cable Cutting and Stripping Machine (30-300 mm², 1-99999.9 mm)

Function: Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed, Run-out sensor, Length correction, Safety door sensor

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Conductor cross-sections: 30-300 mm²

Cable diameter: 15-50 mm

Cutting length (L): 1-99999.9 mm

Cutting length accuracy: 0.002 x L

Stripping length:

  Front (right) side: 1 - 1000 mm

  Rear (left) side: 1 - 300 mm

Feeding system: Servo motor driven 32 rollers, belt-driven

Production rate: 500-1000 pcs/h [depends on cutting length]

Display: 7" color touchscreen, English / Chinese [other languages on request]

Power supply: AC 110V-220V±10%, 50/60 Hz

Dimensions / Weight: L 1680 x W 750 x H 1420 mm. 280KG
