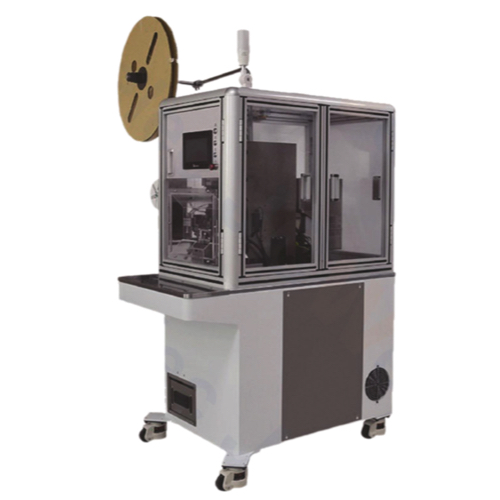

Function: Sealing, stripping, crimping. Seal feeding, cut depth, stripping length, crimping position. Optional CFM.
Wire range: 0.2-2.5 mm² [AWG 24-14]
Seal type: O.D. x Length ≤ 10 mm x 10 mm
Stripping length: Max 10 mm
Cut depth accuracy: +/- 0.02 mm
Crimp force: 3 tons
Stroke: 40 mm
Cycle time: 4 seconds
Product rate: 1200 pcs/h
Air supply: 0.5-0.7 MPa [clean and dry air]
Power supply: AC 110V-220V ± 10%, 50/60 Hz
Dimensions: L 1100 x W 920 x H 1600 mm
Weight: 350 KG
Display: Touch screen, English / Chinese [other languages on request]
