JEIOTECH SKC-7075 Advanced Orbital Shakers (30-500rpm, orbital, 1" stroke) | EMIN.COM.MM

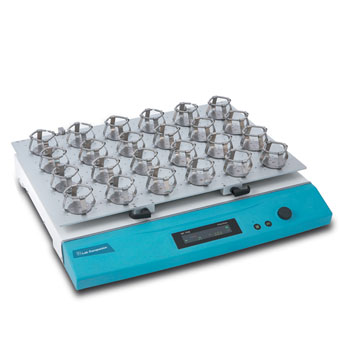

JEIOTECH SKC-7075 Advanced Orbital Shakers (30-500rpm, orbital, 1" stroke)

Name: JEIOTECH SKC-7075 Advanced Orbital Shakers (30-500rpm, orbital, 1" stroke)
Brand: JEIOtech
Price: 19099275 MMK
Availability: OutOfStock

ManufacturerJEIOtech(View more products from this manufacturer)

ModelSKC-7075

P/NAAH30205K

19,099,275 Kyat

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Control system Feedback control PID
Display VFD
Motion type Orbital
Frequency1) (RPM) 30 to 500
Rpm Control at 100rpm ±1
Orbit size (mm / inch, dia) 19 / 0.74
Overall (W×D×H) (mm ) 754.8×662×122.2mm
Net weight (kg / Ibs) 75kg
Electric requirements (230V, 50 / 60Hz) 0.4A
Cat. No. AAH30205

Operational Features

Microprocessor PID control maintaining constant speed.
Wide speed range: 30 ~ 500 rpm
Digital timer with Delayed ON/OFF function: ranging from 1 min to 99 hr 59 min.
Intuitive, splash-proof, and easy-to-clean control panel with a vivid and colorful vacuum fluorescent display(VFD), touch-sensitive buttons, and a dial knob.
Automatic adjusted shaking speed when load imbalance or unusual vibration is detected by the sensor.

Constructional Features

Ideal DD(Direct Drive) Brushless Motor and triple cam system support heavy loads, quiet (beltless, brushless, and gearless), maintenance free, and delivers high torque at high speeds, smooth rotation.
Special acceleration and deceleration circuitry:
- Stopping the shaking table always at the same position allowing for automated dosing or sampling
- Providing smooth start and smooth stop preventing chemical spills from flasks or test tubes
Low-profile design (122 mm high) minimizing vibration or sliding caused by the high speed shaking motion.
Chemicals-resistant and durable construction.
Dirt-repellent external surface with power coating.
Convenient universal platform exchange sliding.
Adopted bright VFD display, and capacitive touch sensor button.
Digital timer: 1min 99hr 59min, delayed ON / OFF.
Various accessories.

Programmable Shaking Motion

Programming parameters
Maximum Number of segments in one (1) pattern (Cycle)		20
Maximum Number of Patterns (Cycle) saved		20
Shaking Motion - Forward & Backward, Pause	Time	1min to 99hr 59min
Shaking Motion - Forward & Backward, Pause	RPM	30 to 500

Model			SKC-6075	SKC-6100	SKC-6200	SKC-7075	SKC-7100	SKC-7200
Control system			Feedback control PID
Display			VFD
Shaking system	Motion type		Orbital
	Frequency¹⁾ (RPM)		30 to 500
	Rpm Control at 100rpm		±1
	Orbit size (mm / inch, dia)		19 / 0.74	25 / 0.98	50 / 1.96	19 / 0.74	25 / 0.98	50 / 1.96
Dimensions	Platform (W×D) (mm / inch)	Small	580×520 / 22.8×20.5			755×520 / 29.7×20.5
		Large	660×520 / 26.0×20.5			885×520 / 34.8×20.5
	Overall (W×D×H) (mm / inch)		582.8×618 ×122.2			754.8×662×122.2
			22.9×24.3×4.8			29.7×26.1×4.8
	Net weight (kg / Ibs)		65 / 143.3			75 / 165.4
Electric requirements (230V, 50 / 60Hz)			0.4A
Cat. No.			AAH30105	AAH30115	AAH30125	AAH30205	AAH30215	AAH30225
Electric requirements (120V, 50 / 60Hz)			0.8A
Cat. No.			AAH30106	AAH30116	AAH30126	AAH30206	AAH30216	AAH30226

1) Due to higher speed range between 350 rpm and 500 rpm, we recommend that the shakers need extra
attachment to be fixed on the floor of the working place.
