JEIOTECH KMV-040 Heating & Cooling Chambers (-35~180℃, 420L) | EMIN.COM.MM

TEMPERATURE & HUMIDITY TEST CHAMBER
JEIOTECH KMV-040 Heating & Cooling Chambers (-35~180℃, 420L)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

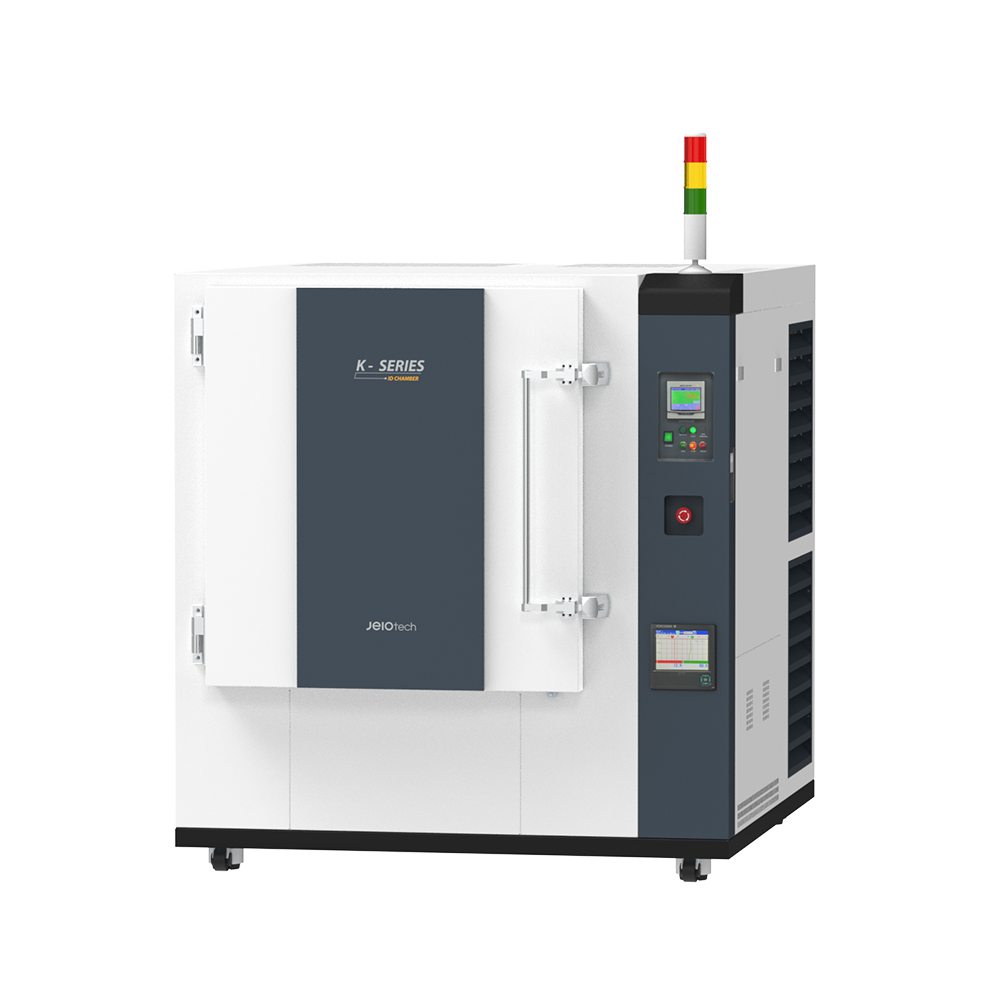

Product image

JEIOTECH KMV-040 Heating & Cooling Chambers (-35~180℃, 420L)

ManufacturerJEIOtech(View more products from this manufacturer)

ModelKMV-040

P/NAAHK9038K

OriginKorea

Warranty12 months

111,335,250 Kyat

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Chamber volume (L): 420
Temperature Range (℃): -35 to 180
Controller: Programmable, Touch screen type controller
Heating time (min.) from 25℃ to 180℃: 66
Cooling time (min.) from 25℃ to -35℃: 60
Max. load per shelf (kg): 30
Max. load per shelf (kg): 90
Interior (mm): 750×700×800
External (mm): 1370×975×1780
Net weight (kg): 320
Interface port: Basically RS-232C
Electrical requirements (AC230V, 60Hz): 1ph / 26A

Performance

Suitable for specific use such as heat treatment and drying process.
Microprocessor PID control / Temperature calibration / Automatic tuning.
Air-tight door closure with double sealed packing.
- Heat-resistant silicone double packing completely blocks high heat leakage from the inner chamber.
- Two-point door latch also enhances tightness to door closure.
Energy efficiency is achieved thanks to optimization of the insulation system.
- Even if the unit is operating at max. temperature, the surface of the unit doesn’t allow high temperatures of over 51℃. (DIN EN 563)
Reliable design and production of door is guaranteed.
- Evaluates the results after opening the door by 90 degrees and applying 50kg load to the point of 30cm from hinges.
