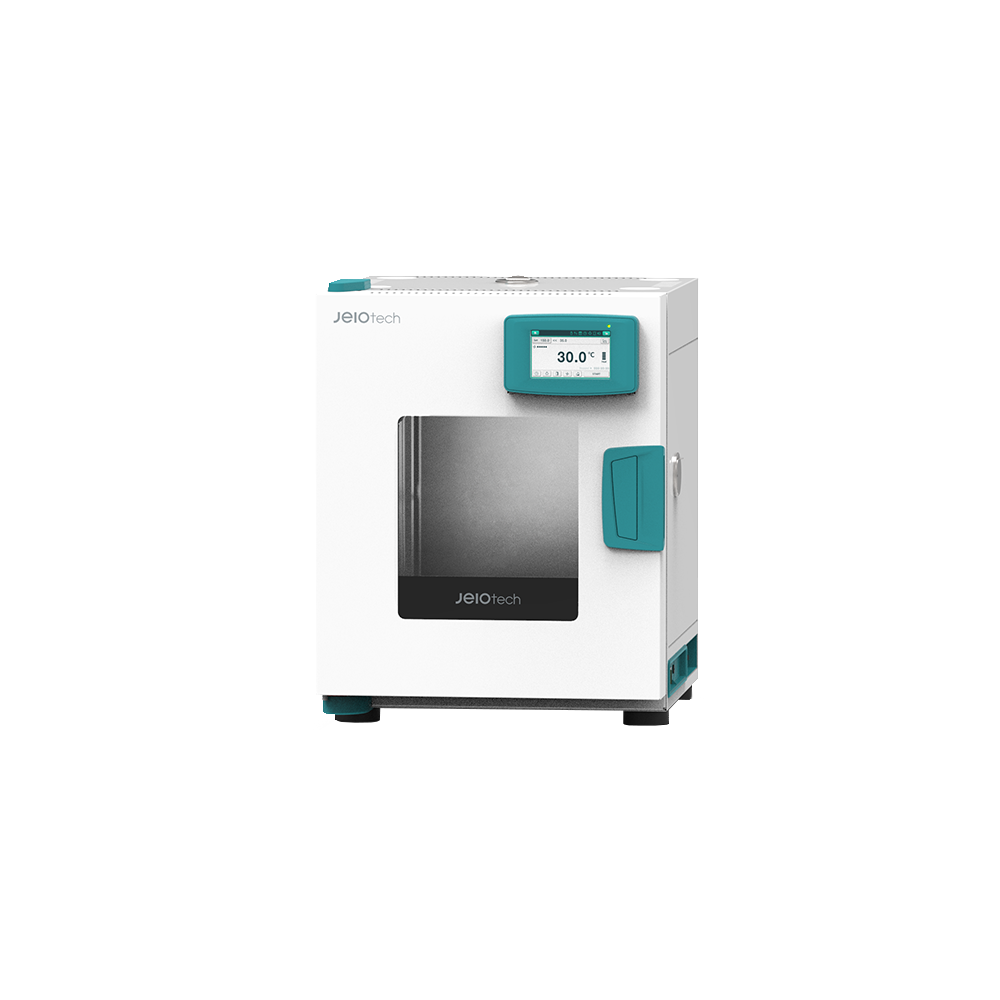

JEIOTECH ON4-03VW Natural Convection Oven (+15 ~ 250℃, 26L, w/o window)

Chamber volume (L / cu ft): 26 / 0.92

Temperature

Range (℃ / ℉): Amb.+15 ~ 250℃ / Amb.+27 ~ 482℉

Fluctuation at 100℃ (℃ ): ±0.3

Variation at 100℃ (℃): ±2.6

Heating time to 100℃ (min.): 34

Recovery time at 100℃ (min.): 16

Control panel: 5 inch TFT Color LCD

Communication interface: USB-B, RS-232

Function:

Recently event record: 36 ea

Recommended temperature: Suggest 3 frequently used temperatures

Graph: Available viewing stored and real-time graphs

Data storage: Save experimental data (in CSV format)

Temp. ramping rate (℃/min. | ℉/min): 0 to 2.2 | 0 to 3.96

Dimensions

Interior (W x D x H, mm): 273 x 270 x 350

Exterior (W x D x H, mm): 478 x 527 x 604

Net weight (kg / lbs): 33 / 72.8

Shelves Quantity of shelves (standard/max.): 2 / 4

Max. Load per shelf (kg / lbs): 20 / 44.09

Number of air change per hour at 100℃: 16

Electrical requirements 230V, 50/60Hz, A: 3.2

Window door
