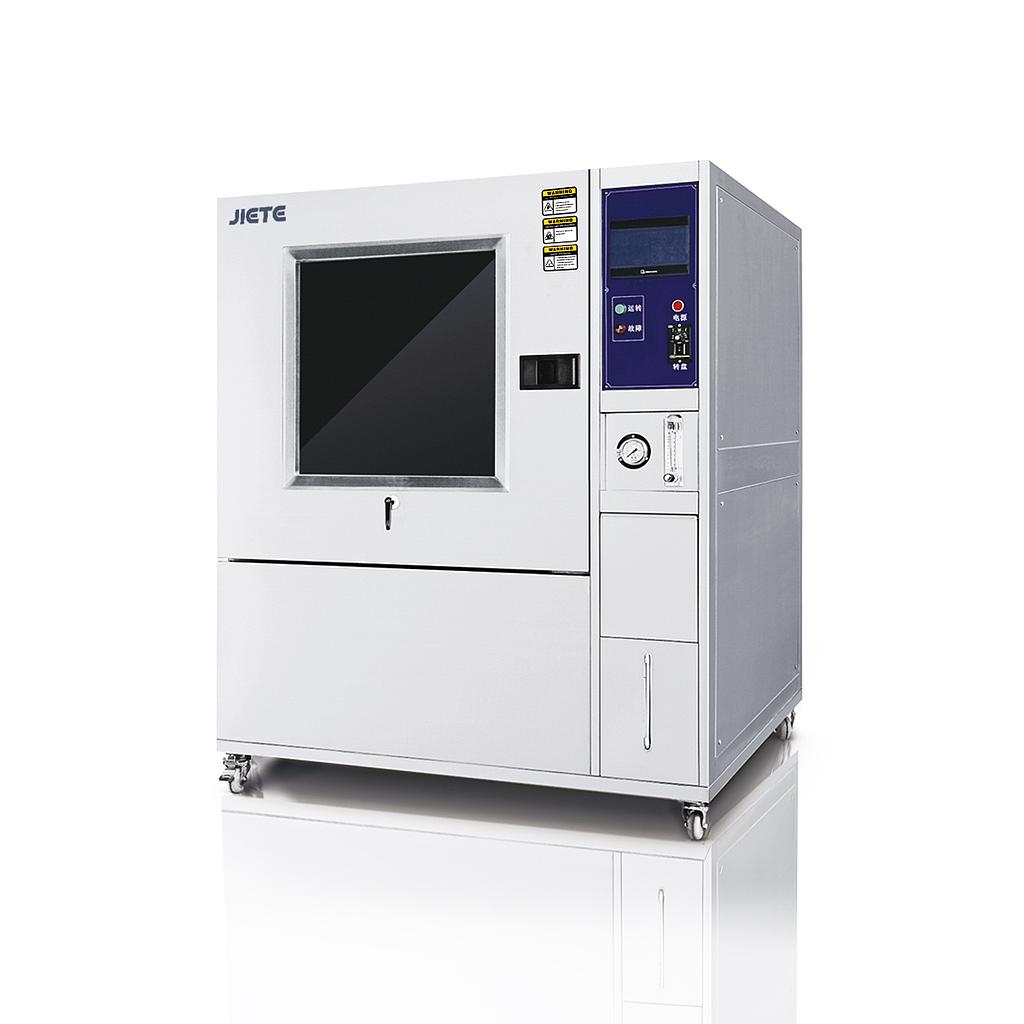

JIETE JT-IPX56-512V Rain Test Chamber (512L; IPX5-6)

Chamber Design:

Internal Volume (L): 512

Internal Dimensions (cm): 80x80x80

External Dimensions (cm): 90x175x128

Horizontal Outer Dimension (cm): 360x175x86

Rotary Disc Diameter (mm): 400

Rotary Table Load Capacity (kg): 20

Experimental Parameters:

Number Of Sprinkler Heads: 2; One IPX5 nozzle and one IPX6 nozzle are included

Spray Hole Inner Diameter: ∅ 6.3 mm IPX5 (rating); ∅ 6.3 mm IPX5 (rating)

Spray Flow Rate: 12.5 ± 0.625 (L/min) IPX5 (rating); 100 ± 5 (L/min) IPX6 (level)

Pipe Diameter: One quarter inch and one inch soft pressure tube each

Spray Pressure: 30-100 kPa (adjusted according to flow rate)

Rotary Speed: 1～3 R/min

Spray Test Time: At least 3 minutes or more (adjustable)

Pre Set Test Time: 1S~9999H59M59S can be adjusted freely

Power Supply And Connection:

Power Supply: 380V 50HZ

Power: 3KW

Environment Condition: Temperature 5 ℃~40 ℃ Relative temperature ≤ 85% RH

System Components:

Material Science: Outer Box Material: SUS#304 stainless steel or cold rolled plate baked paint; Inner Box Material: SUS#304 stainless steel

Control System: Independently developed control system

Product Mix: Composed of a testing bench, water storage tank, control box, product dehydration buffer zone, turntable, and spray system

Water Circulation System: Ensure the recycling of water sources

Safety Device: Power overload/short circuit protection, grounding protection, water shortage protection, alarm sound prompt

Overview

The IPX5/IPX6 Rain Test Chamber is engineered to evaluate the waterproof capabilities of products exposed to powerful water jets. By simulating medium to high-pressure jet spray environments, this test chamber determines whether enclosures, seals, or protective structures can prevent water ingress that may affect functionality or safety. This is essential for devices used in automotive, outdoor electronics, lighting systems, and industrial control equipment.

The test complies with IEC 60529 standards for IPX5 and IPX6 levels:

IPX5: Water jets (6.3 mm nozzle) from all directions at 12.5 L/min, 30 kPa.

IPX6: Powerful water jets (12.5 mm nozzle) from all directions at 100 L/min, 100 kPa.

Features

Standard-Compliant Nozzle System

Equipped with Ø6.3 mm and Ø12.5 mm interchangeable nozzles to meet both IPX5 and IPX6 requirements.

Adjustable Water Pressure & Flow Rate

Fine control over pressure and flow to simulate real-world jet spray conditions accurately.

Rotating Platform

Turntable with adjustable speed (up to 5 r/min) ensures uniform exposure from all angles.

Customizable Test Distance

Spray distance adjustable between 2.5–3 meters for flexible testing setups.

Durable Stainless Steel Structure

Made of SUS#304 stainless steel for corrosion resistance and longevity.

Precision Timer Control

Programmable spray duration with user-friendly touch panel interface.

Built-in Water Circulation System

Recirculates water for environmental efficiency and reduced consumption.

Safety Protections

Includes water shortage protection, overload protection, and emergency stop.

Widely used in waterproof IP testing, product validation, and design verification phases
