Capacity selection: 5, 10, 20, 50,100 KGF
Unit switch: KGF, N, Lb, GF
Degree of load decomposition: 1/250,000
Load precision: ±0.5%
Minimum load: 0.01 GF,0.01 KGF
Minimum displacement display: 0.001mm
Test speed: 0.01~200mm/min or 600mm/min
Speed accuracy: ±0.5%
Motor: Servo motor imported
Sensors: American force transducers
Machine size: 360x270x950mm
Weight: about 70kg

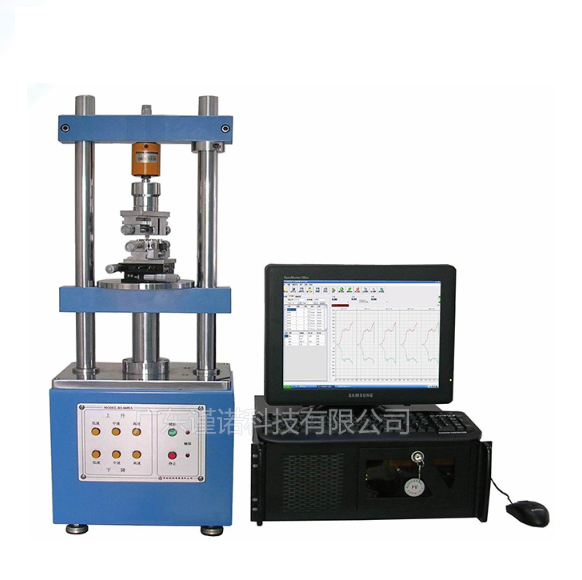

Configuration:
Test machine body
Industrial computer, Philips monitor
HP color printer
Load (50, 20, 5, 2kg)
X-y sliding table (with micrometer)
One set of standard fixture on top and bottom (can be customized according to requirements)
Automatic centering device
Optional accessories for equipment:
Groove milling machine (special fixture for easy deformation connector)
Single PIN in a special fixture for plastic retention
Frame height fixture (special for wire outlet)
Dynamic impedance test
