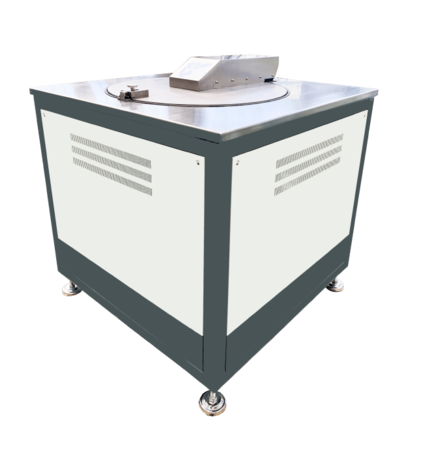

Joeo CAT30-8M Constant Acceleration Tester (0.02kg×N; 200～80k g)

Max. Load (kg)/Position: 0.02×N

Acceleration (g): 200～80k

Max. Height for Specimen (mm): /

Installation Radius (mm): 130

Test Direction: ±X, ±Y ±Z

Launch/Stop Time (Min): ≤5

Continues Worktime (Min): 5

Acceleration Accuracy (%): ≤3

Overall Dimension (mm): 1000×1000×1200

Collector Ring: /

Weight (kg): 1000

Power Supply: AC380V±10% , 50Hz

Control System: Fully closed-loop digital network (remote) automatic control + manual control

Remarks: The current collector and the control precision can be in accordance the related standards or customer requirements

Working Environment: Temperature Range 0～40℃, Humidity≤80% (no condense)

Standards: MIL-STD-810F          IEC68-2-7    MIL-STD-202     MIL-STD-750     MIL-STD-883
