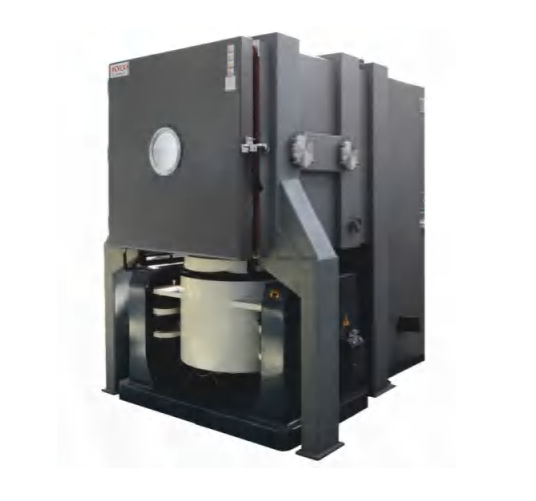

Joeo VTHP-5000-D Environmental Test Chamber (5000L; -40~150℃; 20~98%RH; ~0.5kPa)

Capacity(L): 5000

Working space Internal Dimension WxHxD (mm):  1600x1600x1800

Without Vibration Tester's Height External Dimension WxHxD(mm):  2300x2280x5350

Dimension of Vibration Shaker's Table: Customize

Temperature Range:

+ High Temperature: 150°C( 200°C is optional)

+  Low Temperature: -40°C

Humidity Range: 20%-98%R.H.(5%, 10%-98% RH special condtional need dehumidifier,Optional)

Analytic Accuracy/ Distribution Uniformity of Temperature and Humidity: 0.1°C; 0.1% R.H/  ±0.2°C; ±0.3% R.H:

Control Accuracy of Temperature: ±0.5°C; ±2.5% R.H

Temperature Rising/Falling Speed Rate: Temperature rising approx:0.1~3.0°C/min; Temperature falling approx: 0.1~1.2°C/min (5°C, 10°C,15°C, 20°C,25°C/min with non-linear control or linear average control-optional)

Pressure range: Atmospheric pressure ~0.5kPa

Pressure time: Atmospheric pressure ~1kPa ≤ 30min

Pressure recovery time: ≤±10kPa/min

Rapid decompression time: 75.2kPa~18.8kPa≤15s(Optional)

Cooling System: Wind cooling or water cooling

Optional Accessories: Inner door with operation Hole, Recorder, Water Purifier, Dehumidifier

Vibration Test Equipment: Choose Vibration tester according to customer's test conditionplease take Vibration Test system's catalog for reference

Structural Style: L-Elevator G-Gantry elevator, F-Fixture type

Power: AC380V,3 phase 5 lines,50/60HZ
