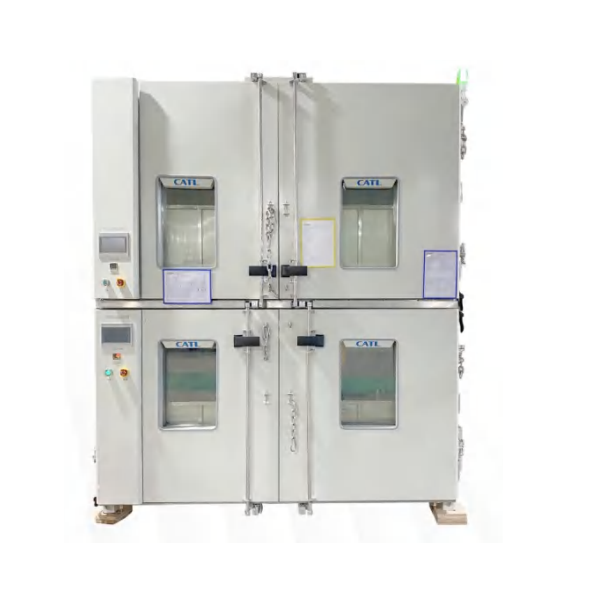

Joeo WHL-10000-E Walk In Test Chamber For CATL Battery (10000L; -60~80°C)

Capacity (L): 10000

Internal Dimension WxHxD (mm): 2200x2000x2600

External Dimension WxHxD (mm): 3700x2800x4600

2 dimension for optional: 4200x2800x2600

Temperature Range:

+ Low Temperature: -60°C

+ High Temperature: 80°C  ( 80°C ~100°C is special optional)

Analytic Accuracy/Distribution Uniformity of Temperature : 0.1℃ / ±2.0℃

Control Accuracy/fluctuation of Temperature: ±0.5℃ / ±2.0℃

Temperature Rising/ Falling Speed Rate: Temperature rising approx:0.1~ 3.0℃/min;Temperature falling approx:0.1-1.0℃/min

Cooling System:

+ Water cooling (Water temperature 5℃ to30℃,water pressure: 0.15 to 0.4MPa)

+ Air cooling:(Environmental temperature 5℃ to 28℃) -Optional

Optional Accessories: Slope for cart, Recorder, Water Purifier, Dehumidifier etc

Compressor: French "Tecumseh" Brand, Germany "Bitzer" Brand

Power: AC380V, 3 phase 5 lines ,50/60HZ
