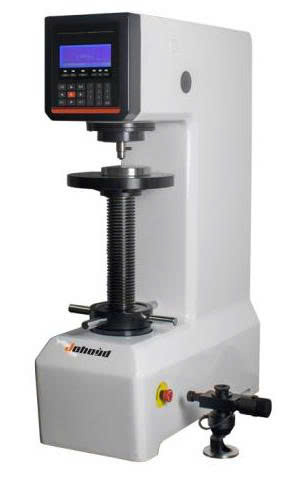

- Technical Parameters:
Brinell scale: HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250,HBW5/750, HBW10/100、HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Test force: 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)
Load control: Automatic (loading/holding/unloading)
Maximum specimen height: 220mm
Minimum measurement unit: 0.001mm
Dwelling time: 0~60s
Hardness test range: 3.18~653HBW
External digital display and reading microscope: With built-in light source, the indentation can be clearly seen and measured.
Total magnification: 20X
Implementation standard: EN ISO 6506, ASTM E-10-08, GB/T231.2，JJG150 -2005
Distance between indenter and outer wall: 135mm
Distance between indenter and upper wall: 55mm (the distance from the indenter to the upper machine wall can be increased by customizing the indenter)
Hardness reading: After measuring the indentation through the eyepiece, enter the indentation length by pressing the key to directly obtain the hardness value.
Data output: Built-in printer
Power supply: AC220+5%,50~60Hz
Dimensions (mm): 520*210*745mm
Main unit weight: 120kg
Main functions and features:
1. Equipped with precision sensors and CPU microcomputer control system, it can automatically compensate, and the test results are accurate and stable;
2. It has 10 levels of test force, which can test a wider range;
3. After measuring the indentation through the digital display eyepiece, the indentation length is directly measured to directly obtain the hardness value, which improves work efficiency;
4. Equipped with a built-in printer, the measurement data can be analyzed and printed.
5. Equipped with a high-performance stepper motor to automatically load and unload the test force, the noise generated during the test is smaller;
6. The shell is cast once, the structure is stable and does not deform, and it can work in a relatively harsh environment;
7. The surface is treated with automotive paint technology, with strong scratch resistance, and it is still bright as new after many years of use;
8. This machine can be equipped with Brinell image measurement software to greatly improve work efficiency
Main uses and scope of use:
1. Suitable for hardness test of metal materials with large grains, which can reflect the comprehensive performance of the material;
2. Cast iron, steel, non-ferrous metals, alloys, especially for softer metals such as pure aluminum, lead, tin, etc.
3. Can be used for hardness test of some non-metallic materials such as hard plastics, bakelite, etc.
