- Technical Parameters:
Force value: 30 -187.5kgf, Level 7 test force
Brinell Ruler: HB1/30、HB2.5/31.25、HB2.5/62.5、HB2.5/187.5、HB5/62.5、HB10/100
Brinell test force: 30、31.25、62.5、100、187.5Kgf（294.2、306.5、612.9、980.7、1839N）
Rocket Ruler: HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、HRL、HRM、HEP、HRR、HRS、HRV
Rocket test force: 60kgf(588N), 100kgf(980.7N), 150kgf(1471N)
Vickers Ruler: HV30/HV100
Vickers test force: 30kgf(294.2N), 100kgf(980.7N)
Objective lens: 2.5X objective lens 5X objective lens
Microscope magnification: Brinell：37.5×，Vickers ：75×
Smallest unit of measurement: Brinell：0.004mm; Vickers ：0.002mm
Maximum test height: Rocket：185mm, Brinell, Vickers ：120mm
Holding Time: 2~60s
Hardness test range: Rocket：20~100, Vickers ：8~2900, Brinell：3~650HBW
power supply: AC220+5%,50~60Hz
Dimensions (mm): 530*200*700
Host weight: 95kg

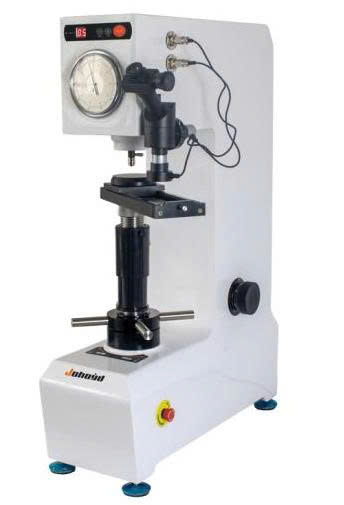

Main features of the instrument
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;
2. It has three test methods, Brinell, Rockwell and Vickers, and seven-level test force, which can meet various hardness test requirements;
3. The cast shell has a stable and non-deformed structure in one-time molding, high-grade pure white car paint, strong scratch resistance, and it is still bright as new after many years of use;
4. Our company has the ability to research, develop, design, produce and process by ourselves, and provide parts replacement and maintenance upgrade services for our machines for life;
The main purpose and scope of use of the instrument:
1. Determine the Brinell, Vickers and Rockwell hardness of ferrous metals, non-ferrous metals and cemented carbides:
2. Brinell hardness of castings, annealed steel, normalized steel, non-ferrous metals and soft alloys;
3. Rockwell hardness of heat-treated materials such as quenching and quenching and tempering;
4. Vickers hardness of nitriding layer, ceramics, thin plates, metal flakes, electroplating layers, and small parts;
