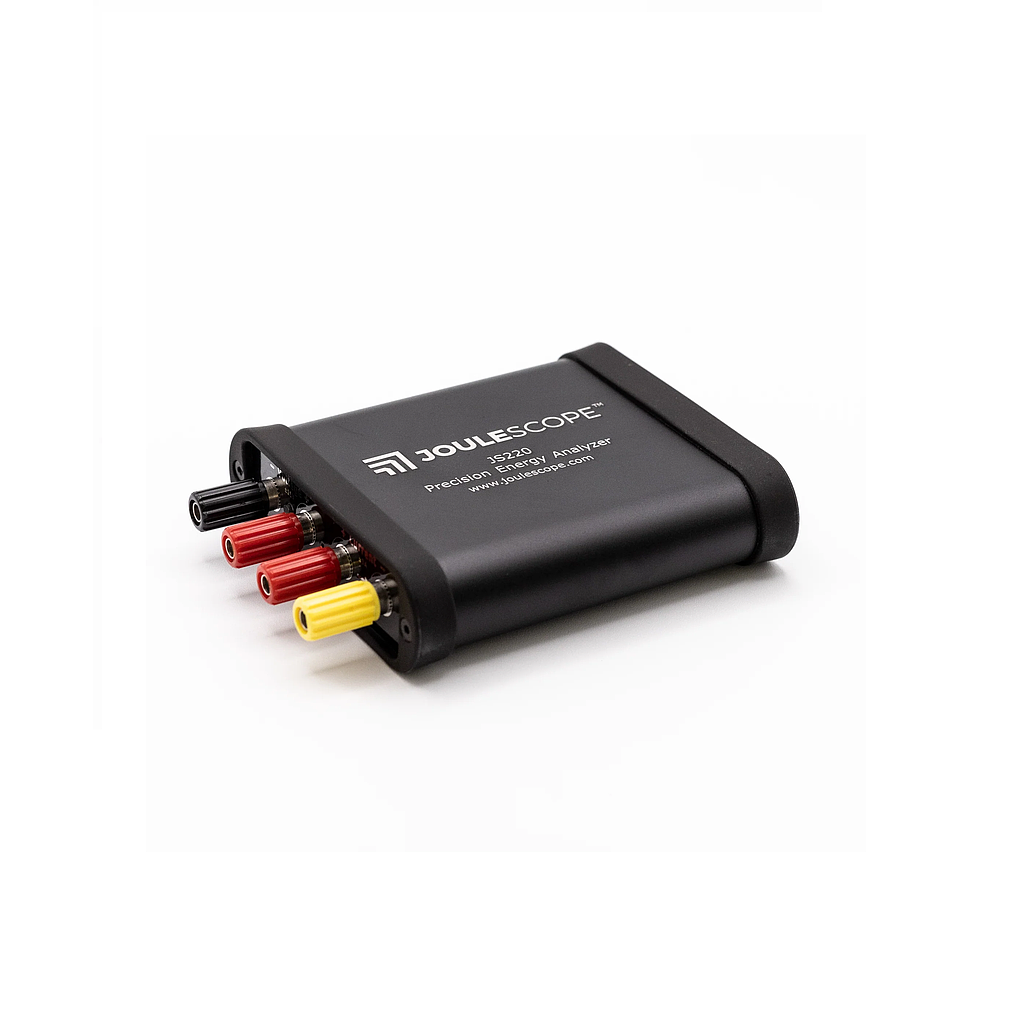

Joulescope JS220 Precision Energy Analyzer

Includes:

Joulescope JS220 instrument with installed binding post front panel

5' USB cable

25 cm GPIO cable

Allen wrench (for swapping the front panel)

Quick start guide

Sticker

Carrying case

Specifications summary:

±15V voltage range

±3A current range, continuous (10A pulses)

0.5 nA resolution, equivalent to 34-bits of dynamic range

300 kHz bandwidth with 2 million samples per second, 16-bit, simultaneous current and voltage

Rapid 1 μs switching between shunt resistors for seamless dynamic current measurement

Enwavify™ technology for consistent, accurate measurements through current range changes

Computes power, energy, and charge

Sensor ports electrically isolated from USB

Works with Microsoft® Windows®, Apple® macOS®, and Linux®

See the Datasheet for details
