Application
Fiber laser pumping
Material processing
Specification
Optical Parameters
Output Power: min 15 W
Center Wavelength (nm): min 440; typical 450; max 460
Spectral Width(FWHM): 6 nm
95% Power Within NA: 0.18 NA
Electrical Parameters
Threshold Current (A): Max 0.5
Operating Current (A): typical 3.2; max 3.8
Operating Voltage (V): Max 20
Fiber Parameters
Core Diameter (μm): typical 105
Fiber Clad Diameter (μm): typical 125
Numerical Aperture (NA): typical 0.22
Fiber Length (m): min 1.5
Fiber Bend Radius (mm): min 30
Thermal Parameters
Package Operating Temperature (℃): min 15; max 40
Storage Temperature (℃): min -20; max 85
Wavelength Temperature Coefficient (nm/℃): typical 0.3
Lead Soldering Temperature (℃): typical 260
Lead Soldering Time (s): typical 10

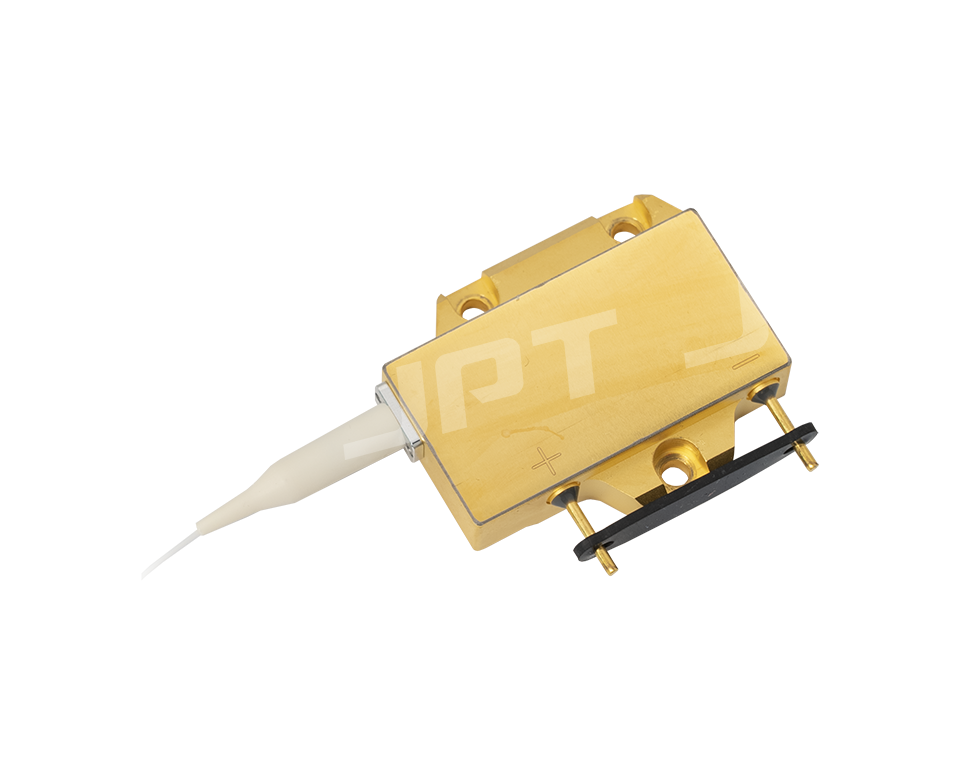

JPT has different kinds of semiconductor laser components and high-power laser modules. Semiconductor laser can be widely used in pump source, industrial processing, mechanical vision, medical and many other fields. Based on the mature coupling technology solution, thermal control and packaging process, the product has the advantages of high power, high beam quality, high stability, etc., and the product wavelength covers 400nm~1000nm, which meets the special requirements of power, brightness, wavelength control, spot uniformity and so on.
