Application
Laser cutting
Laser welding
3D printing
Precision drilling
Cladding
Other applications
Specification
Nominal Average Output Power (W): 4000
Beam Parameter Product (mm*mrad): <2 @50um
Central Emission Wavelength (nm): 1080
Spectral Width @3dB (nm): <6
Armored Cable Length (m): 20
Cooling method: Water Cooled (Purified Water)
Operating voltage (V): Single-phase 380(AC)±10%
Maximum power consumption (W): 13000
Switch on/off time (us): <20
Maximum modulation frequency (kHz): 5
Operation Temperature (℃): 24 ~ 26
Storage temperature (℃): -20 ~ 50
Net weight: 345 kg
Size (W x D x H): 1394 × 902 × 915 mm

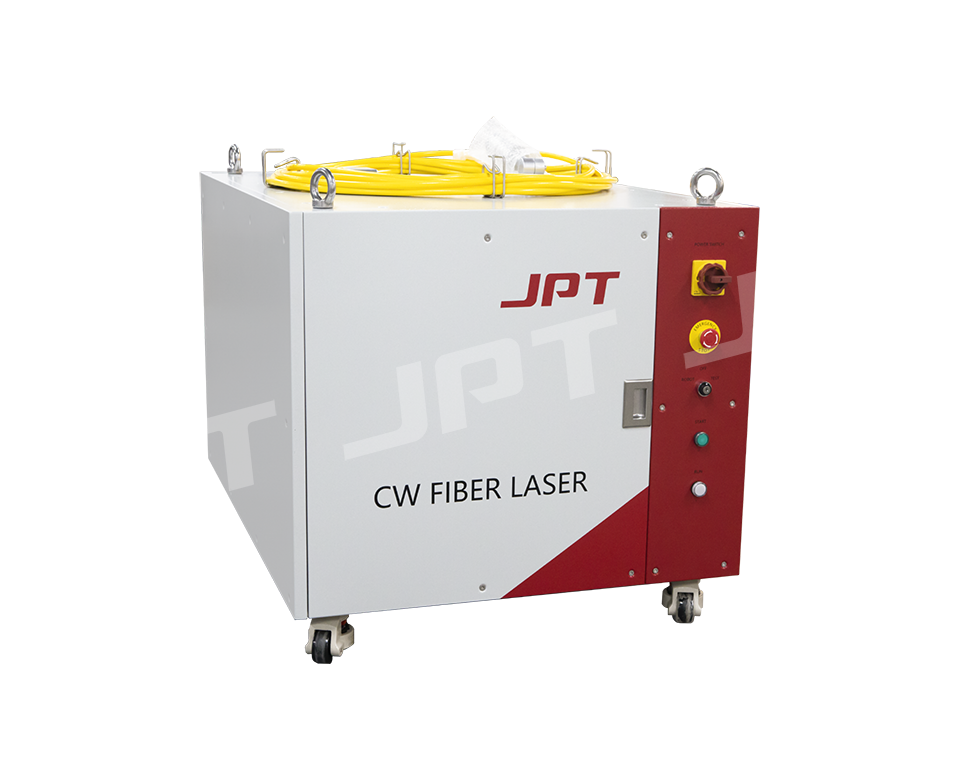

JPT CW laser(4000W-6000W) is the optimal combination of optical, mechanical, electrical and software components. Through the controlling ports and the controlling software, the operating status of the laser can be monitored in real time, alarm messages can be received in time, and data can be collected. The laser uses water-cooling and shelf case design, with competitive advantage like high energy conversion (electric to light), low power consumption, maintenance free, fiber delivery, and easy to move & assemble, it is the most suitable laser source for industrial laser welding, cutting and other applications.
