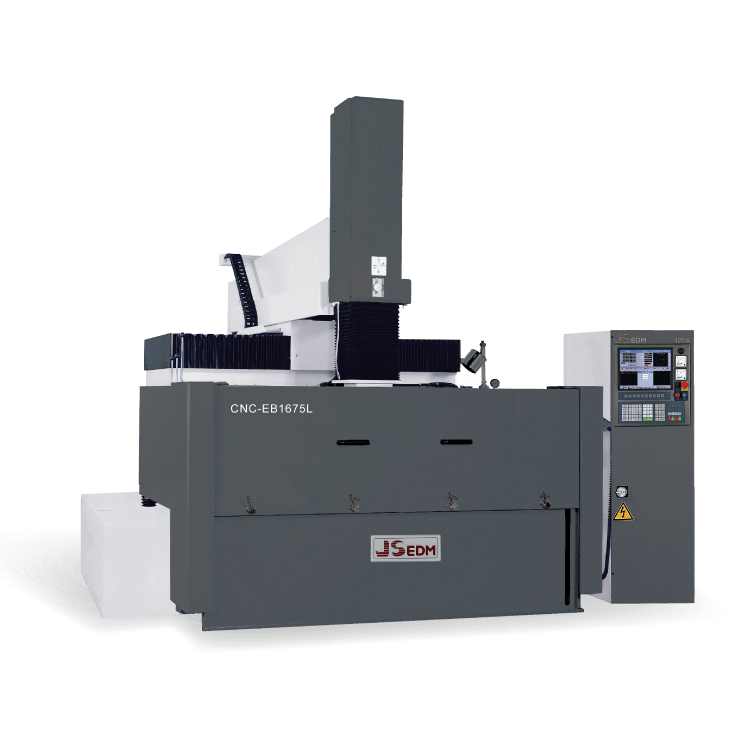

JSEDM CNC-EB1675L Electric Discharge Machine (600; 800 mm3/phút)
Manufacturer: JSEDM Model: CNC-EB1675L Guarantee: 12 Month - Contact
Capacity of work tank: 2400x1320x700mm
Work table size: 1850x1000mm
Longitudinal travel(X-axis): 1600mm
Cross travel(Y-axis): 750mm
Z axis travel(Z-axis): 550mm
Distance between platen to table: 500~1050mm
Max. Electrode weight: 450kgs
Max. Work piece weight: 6500kgs
Fluid tank capacity: 2600L
Machine outside dimensions(WxDxH): 4800x3800x3200mm
Machine weight: 8500kgs
Max. Machining current: 90A; 120A(Optional)
Max. Power input: 10KVA; 13KVA
Max. Machining rate: 600; 800 mm3/min
Min. Electrode wear ratio: 0.12%
Best surface / Ra: Ra 0.2μm
Min. D. R. O. resolution(mm): 0.001mm
Generator weight: 350 kgs
