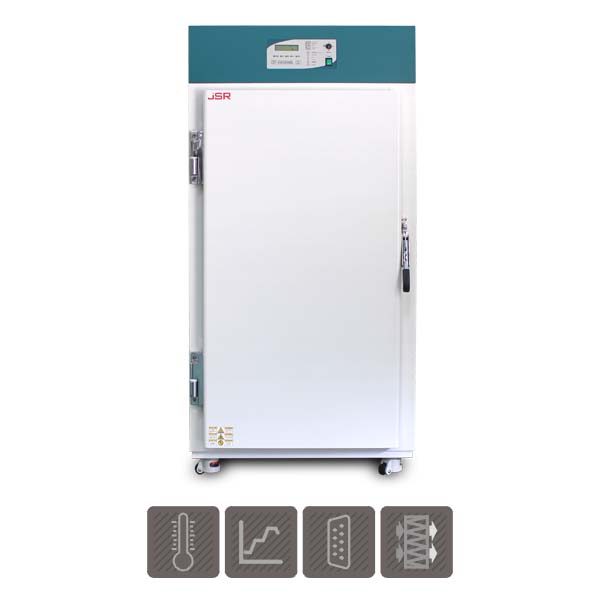

JSR JSCO-300T HEPA Filter Clean Air Oven (336 L; 250 °C)

Chamber Volume: 336 L

Internal Dimensions (W × D × H): 600 x 560 x 1000 mm

External Dimensions (W × D × H): 845 x 1100 x 1740 mm

Shelf Spacing: 25 mm

No. of Shelf Positions: 36

No. of Perforated Shelves Included: 3

Heating System: Forced Air Convection, Horizontal Laminar Air Flow

Temperature Range: Amb. +10 °C ~ +250 °C, 0.1 °C resolution

Temperature Accuracy (at 120 °C): ±0.3 °C

Temperature Uniformity (at 120 °C): ±5.0 °C

HEPA Filter: H14 (ISO Class 5) High-Temperature HEPA Filter

HEPA Filter Efficiency: 99.995% for particles > 0.3 µm

Controller: Digital Microprocessor Programmable PID Temperature Controller

Display: 2-Line Backlit LCD

Temperature Calibration: Built-in Calibration with Auto-Tuning

Timer: 99 min 59 sec / 99 hr 59 min

Programming Mode: Constant Temperature Mode / Program Mode

Sensor: Class A PT-100 Ω

Communication Interface: RS-232C (Optional), RS-485 (Optional)

Power Supply: 220 VAC ±10%, 50/60 Hz

Heater Output: 2 × 2.0 kW

Nominal Power: 4.5 kW / 20.5 amp

Phase: Single Phase

Plug Configuration: 30 AMP Plug

Temp. & Humidity: 5 °C … 40 °C / < 80% RH
